Pharmaceutical-grade dual-station buckle folding system with 10 buckles in the first station and 6 in the second, 20mm minimum fold width. Delivers precision fold registration for carton box inserts, pharmaceutical outserts and blister pack leaflets, ideal for pharmaceutical cartoning lines.

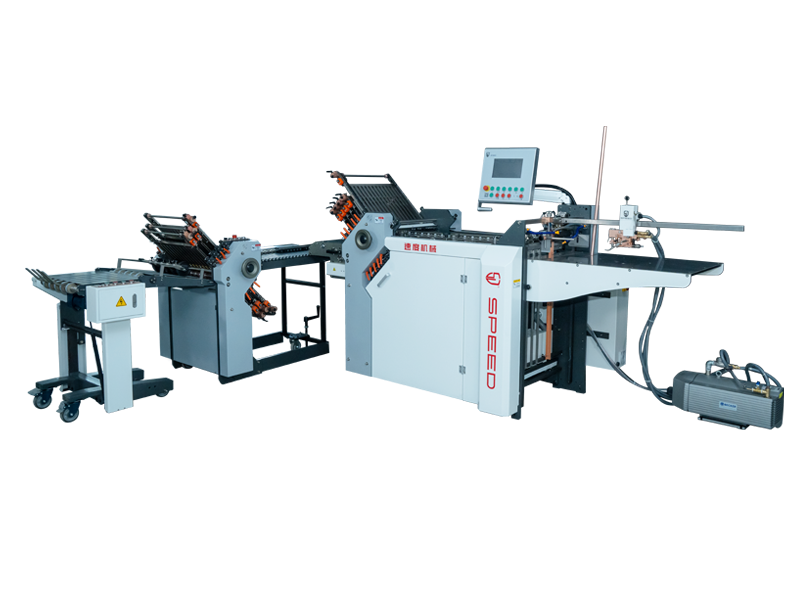

The 10+6 Buckle Box Insert Folding Machine is a pharmaceutical-grade dual-station buckle folding system purpose-engineered for high-precision production of carton box inserts and pharmaceutical outserts. It is the ideal folding solution for contract packaging organizations (CPOs), pharmaceutical packaging facilities and cartoning line integrators requiring consistent, repeatable folding performance for secondary packaging applications.
Equipped with 10 precision buckle plates in the first folding station and 6 buckle plates in the second station, it supports a comprehensive range of standard fold patterns including half fold, tri fold, accordion fold, double parallel fold, cross fold, gate fold and letter fold. This dual-station configuration excels at producing multi-panel inserts and outserts that fit compactly inside medicine cartons, blister packs and healthcare product packaging, delivering tight, uniform fold dimensions for seamless cartoning line integration.
It processes paper stocks ranging from 35 to 200gsm, with a maximum sheet size of 520×1000mm and a minimum fold width of 20mm to accommodate both standard and miniature box insert formats. Operating at speeds of up to 180m/min, it delivers consistent fold registration accuracy and sharp, crisp creases for production-grade output quality. The machine is compatible with integrated waste rejection systems and double sheet detection technology to uphold strict pharmaceutical quality control standards and minimize production waste.
CE certified for safety and quality compliance, and built to pharmaceutical-grade production standards, this box insert folder features a robust industrial frame and wear-resistant folding components for minimal routine maintenance and reliable long-term operation. It is fully optimized for high-volume production of carton box inserts, pharmaceutical outserts, blister pack leaflets, product instruction inserts and packaging literature across pharmaceutical, healthcare, cosmetic and consumer goods sectors.
Reference specifications for T520/10+6 buckle. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Model | T520 Pharma Packaging Series |
|---|---|
| Certification | CE Certificate |
| Min. sheet size (standard) | 60 × 100 mm |
| Min. sheet size (with waste rejection) | 100 × 120 mm |
| Max. sheet size | 520 × 1000 mm |
| Max. paper pile height | 550 mm |
| Paper weight range | 35–200 gsm |
| Min. fold width | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1100 × 1500 mm |
| Overall dimensions | 3200 * 2600 * 1500 mm |
Core components & optional in-line pharma packaging modules for complete leaflet folding production lines. Configurations vary by model; custom integration available.
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.
T520 Pharma Leaflet T520 pharmaceutical leaflet folding configuration for medicine instruction sheets and package inserts, with standard and waste-rejection feeding limits and optional inline packaging modules.
T520/10+4 buckle Pharmaceutical inline buckle folding system with 10 buckles in the first station and 4 in the second, 180m/min high-speed operation, precision fold registration, and 35–200gsm stock compatibility, ideal for patient package inserts, carton inserts and pharmaceutical outserts.
T520/8+6 buckle Pharma industrial buckle folding system with integrated waste rejection, 180m/min high-speed operation, 20mm minimum fold width. for medical instructions, pharma inserts, patient leaflets and carton inserts, ideal for pharmaceutical packaging facilities and medical printing houses.
Folded to carton-insert size from 40–120 gsm pharma paper; the highest-volume pharmaceutical folding job.
Patient information leaflets must fit the carton while retaining readable multi-panel copy. Miniature sheet handling, repeatable fold position and counted delivery are the main production checks.
The T490 and T520 cover leaflet folding. Confirm the pattern on the actual stock, then specify any required knife, pressing, sealing and delivery modules against the finished sample and packaging process.
Deep-folded leaflets of 8, 12 or 16 panels that behave like a booklet and must lie flat for packing.
An outsert folds a larger information sheet into a compact, multi-panel piece for a carton. The finished stack must lie flat and feed consistently into packing equipment.
The folding platform and plate arrangement depend on the panel count and sheet. Review any knife operation and SD-XP300 pressing against the finished sample; sealing and delivery are specified with the required line configuration.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.
Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
