SPEED pharmaceutical leaflet folding machines are specialized folding solutions tailored for the pharmaceutical packaging sector. Built on precision buckle folding technology and optimized for ultra-small format substrates, they deliver exceptional fold accuracy and repeatability for medicine instruction sheets and package inserts, meeting the strict quality and compliance standards of the global pharma industry.
Pharmaceutical packaging
Our pharmaceutical leaflet folding line operates on the high-precision buckle folding principle. Sheets are fed via a vacuum suction system with precise registration, then pass through multiple sequential folding units to complete various fold patterns with consistent crease quality.
The line can be seamlessly integrated with parallel cutters, flattening presses, labelers and vertical stackers to form a fully automated end-to-end production workflow. Equipped with CCD vision inspection, automatic waste rejection and double-sheet detection, it supports all standard pharmaceutical leaflet fold styles and integrates effortlessly with upstream and downstream pharmaceutical packaging lines.
Example line equipment is shown below. Inline modules are selected separately for the finished leaflet and downstream process; the folding machine range follows in the next section.
T520 pharmaceutical leaflet folding configuration for medicine instruction sheets and package inserts, with standard and waste-rejection feeding limits and optional inline packaging modules.
View T520 pharmaceutical details ↗
The SD-X250 Parallel Knife Unit is listed as a module in the pharmaceutical packaging equipment range. Select it around the incoming piece, finished dimensions and required line operation; confirm the process and equipment interfaces with SPEED.
View SD-X250 details ↗
The SD-XP300 Pressing Machine is a pharmaceutical line module used with leaflet folding equipment. Specify the pressing stage around the finished piece, required flatness and line layout.
View SD-XP300 details ↗This pharmaceutical packaging leaflet folding production line features a self-developed integrated control system for simple and intuitive operation.
It can be fitted with an optional water spray dampening system and scoring unit, and supports glue dot sealing or label sealing configurations to meet diverse pharmaceutical folding and packaging requirements.
Flattening, cutting, labeling and gluing modules are selected to suit the pharmaceutical packaging line.
T520 Pharma Leaflet T520 pharmaceutical leaflet folding configuration for medicine instruction sheets and package inserts, with standard and waste-rejection feeding limits and optional inline packaging modules.

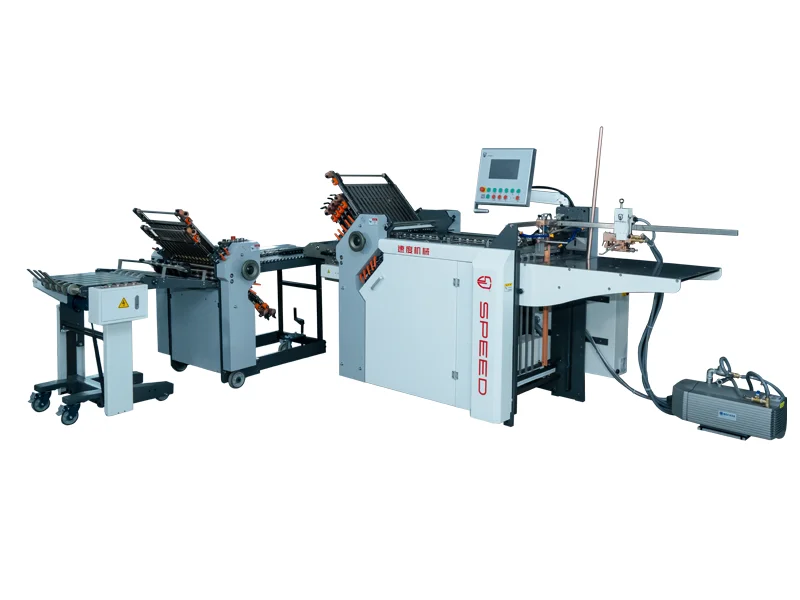

T520/10+4 buckle Pharmaceutical inline buckle folding system with 10 buckles in the first station and 4 in the second, 180m/min high-speed operation, precision fold registration, and 35–200gsm stock compatibility, ideal for patient package inserts, carton inserts and pharmaceutical outserts.

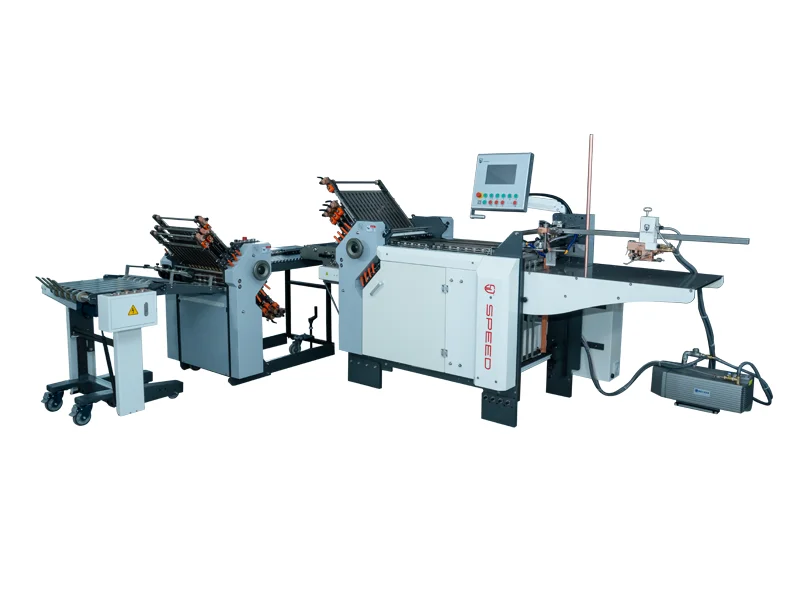

T520/8+6 buckle Pharma industrial buckle folding system with integrated waste rejection, 180m/min high-speed operation, 20mm minimum fold width. for medical instructions, pharma inserts, patient leaflets and carton inserts, ideal for pharmaceutical packaging facilities and medical printing houses.

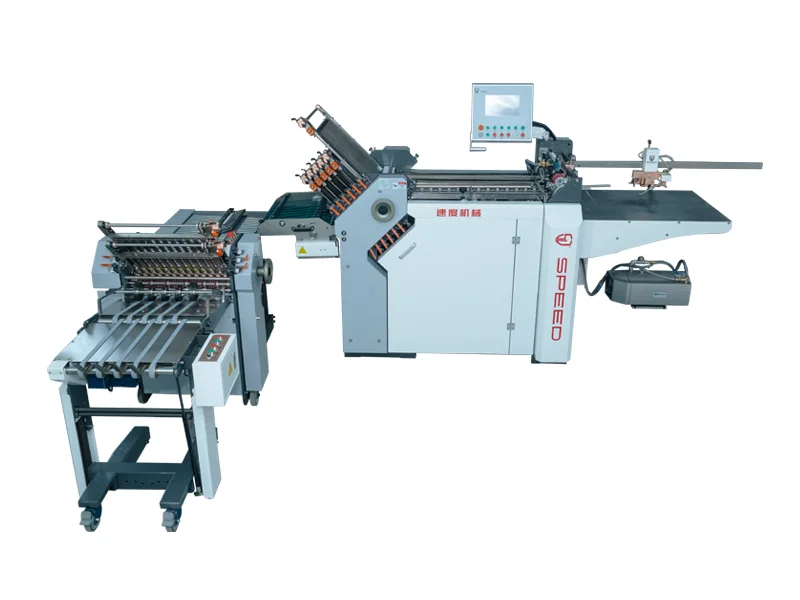

T520/12+4 buckle Pharmaceutical inline buckle folding machine for seamless cartoning line integration. 180m/min high-speed operation, precision fold registration, and 35–200gsm stock compatibility, ideal for PILs, patient package inserts and regulatory pharmaceutical literature.
T520/10+6 buckle Pharmaceutical-grade dual-station buckle folding system with 10 buckles in the first station and 6 in the second, 20mm minimum fold width. Delivers precision fold registration for carton box inserts, pharmaceutical outserts and blister pack leaflets, ideal for pharmaceutical cartoning lines.

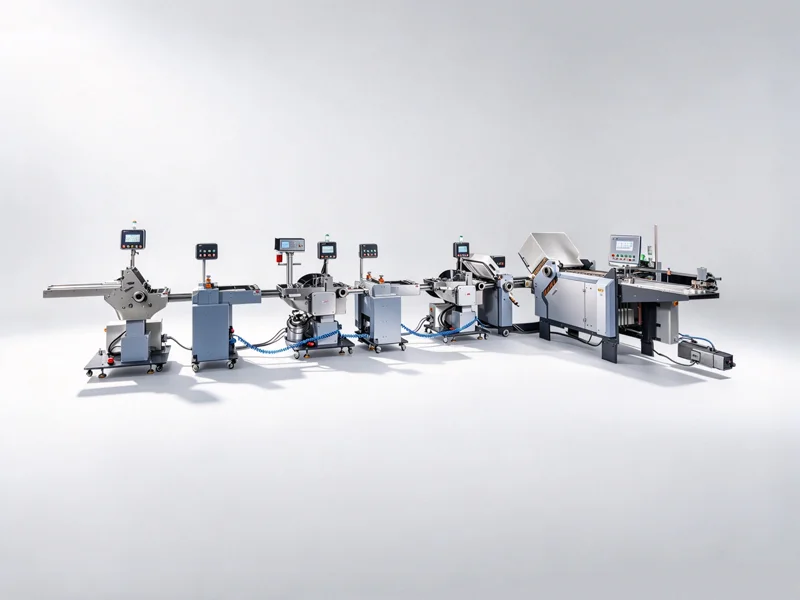

T520 Package Insert The T520 is a dedicated folding configuration for pharmaceutical leaflets and medical package inserts, featuring standard and waste-rejection sheet feeding thresholds, with optional inline packaging modules for seamless integration into pharma packaging production lines.

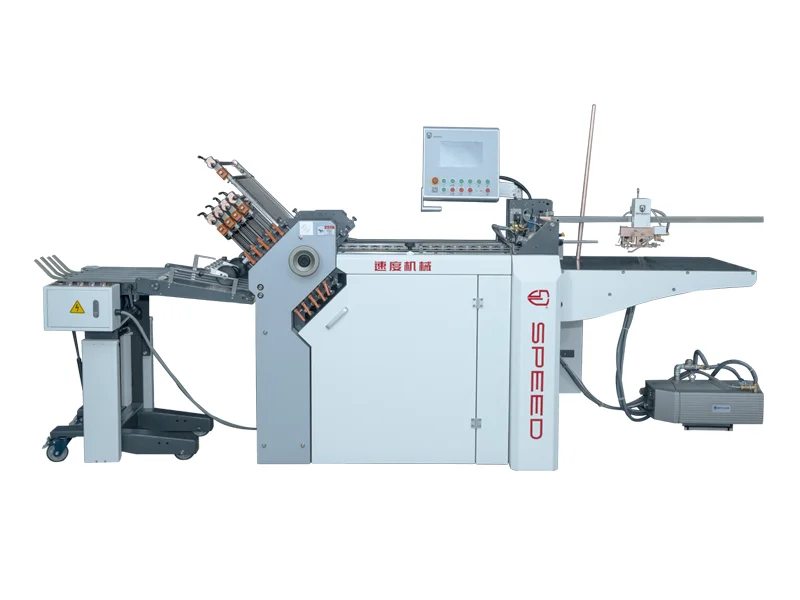

T600/10-buckle Pharmaceutical inline buckle folding system with 10 precision buckle plates, fully compatible with pressing units, parallel knives, labelers, hot melt gluers and vertical stackers for seamless packaging line integration. for patient package inserts, IFUs and pharmaceutical leaflets.

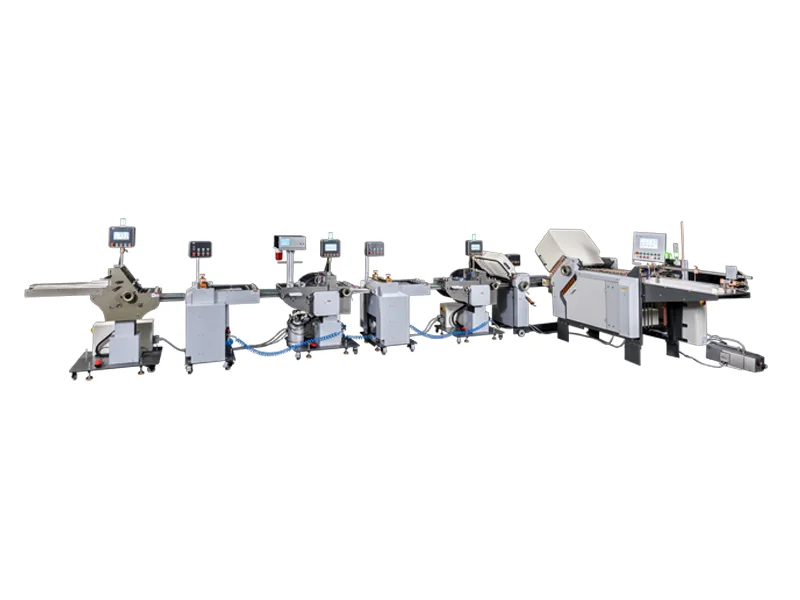

Folding Production Line Integrates vacuum feeding, buckle folding, pressing, knife folding, labeling, hot melt gluing and vertical stacking units. delivers precision fold registration for PILs, medication guides and pharmaceutical inserts, ideal for pharmaceutical manufacturers and printing packaging organizations.

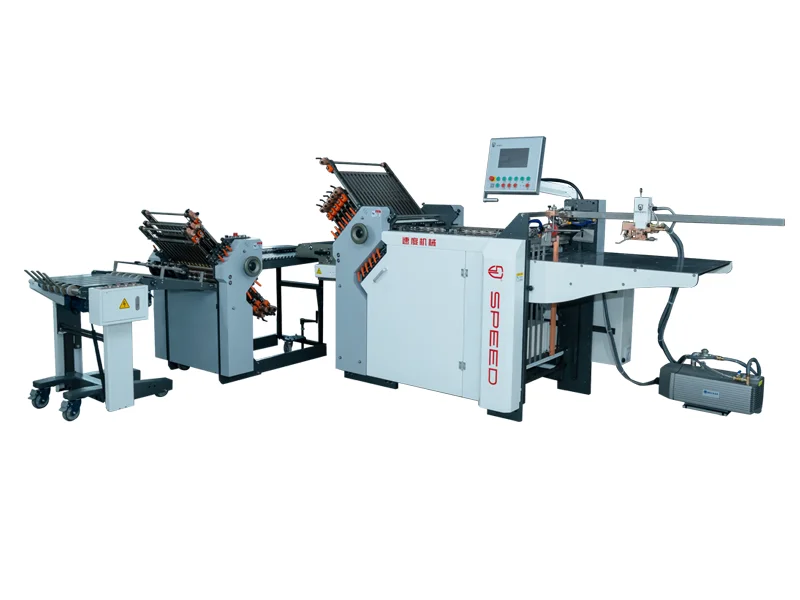

T600/12+6 buckle 12-buckles in the first station and 6-buckles in the second, fully compatible with pressing units, parallel knives, labelers, hot melt gluers and vertical stackers. 180m/min high-speed, precision fold registration, ideal for medication guides, package inserts and prescription drug leaflets.
T600/14+6 buckle High-precision industrial buckle folding system with automatic vacuum feeding and integrated waste rejection, 20mm minimum fold width. Delivers accurate fold registration for carton inserts, blister pack leaflets and pharmaceutical package inserts, ideal for pharmaceutical packaging facilities.
Folded to carton-insert size from 40–120 gsm pharma paper; the highest-volume pharmaceutical folding job.
Patient information leaflets must fit the carton while retaining readable multi-panel copy. Miniature sheet handling, repeatable fold position and counted delivery are the main production checks.
The T490 and T520 cover leaflet folding. Confirm the pattern on the actual stock, then specify any required knife, pressing, sealing and delivery modules against the finished sample and packaging process.
Deep-folded leaflets of 8, 12 or 16 panels that behave like a booklet and must lie flat for packing.
An outsert folds a larger information sheet into a compact, multi-panel piece for a carton. The finished stack must lie flat and feed consistently into packing equipment.
The folding platform and plate arrangement depend on the panel count and sheet. Review any knife operation and SD-XP300 pressing against the finished sample; sealing and delivery are specified with the required line configuration.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.
Core components & optional in-line pharma packaging modules for complete leaflet folding production lines. Configurations vary by model; custom integration available.
Component availability and inclusion depend on the confirmed machine configuration.
A patient information leaflet is the hardest folding job in print. The sheet is small — often 60 × 100 mm unfolded in the miniature end of the range — the paper is thin, the fold has to be square enough to feed a cartoning line, and the fold line must not crack the ink or the fibre. Get any of those
Solution · Outsert systemsAn outsert is a leaflet folded deep enough — typically eight, twelve or sixteen panels — that it becomes a small booklet in its own right, usually wrapped around or packed with the primary container. The engineering problem is that every additional panel multiplies the error of the panels before it,
Seven checks that turn a job list into a machine specification and a sample-test brief.
Compare the complete quotation, prepare the site and agree how the machine will be accepted.
Compare how the folds are formed and choose the station arrangement around the finished job.
We fold your paper on the recommended model before you commit, and return the samples with fold measurements.
