High-precision industrial buckle folding system with automatic vacuum feeding and integrated waste rejection, 20mm minimum fold width. Delivers accurate fold registration for carton inserts, blister pack leaflets and pharmaceutical package inserts, ideal for pharmaceutical packaging facilities.

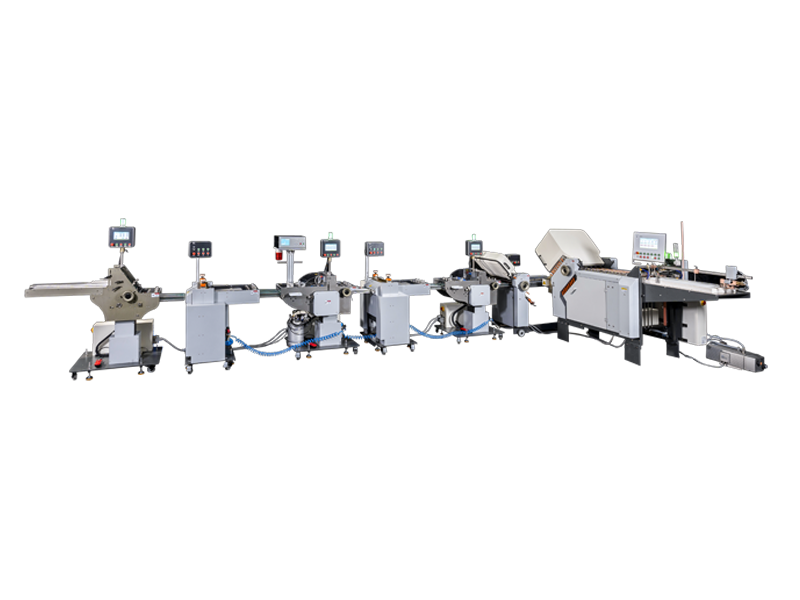

The T600 Pharmaceutical-Grade Packaging Insert Folding Machine is a high-precision industrial buckle folding system purpose-built for secondary packaging operations across pharmaceutical, healthcare and consumer goods industries. It delivers reliable, repeatable folding performance for contract packaging organizations (CPOs), pharmaceutical packaging facilities and commercial print finishing houses specializing in package insert production.
Equipped with an automatic vacuum feeding system integrated with a waste rejection system, it ensures only defect-free sheets enter the folding station, upholding strict quality control standards for pharmaceutical and medical packaging. The machine features precision 32mm diameter folding rollers and a robust buckle folding mechanism, supporting a full range of standard fold patterns including half fold, tri fold, accordion fold, double parallel fold, cross fold and gate fold. With a minimum fold width of 20mm, it is optimized for compact carton inserts and blister pack leaflets that demand tight, accurate folding dimensions.
It processes paper stocks ranging from 35 to 200gsm, accommodating sheet sizes from 60×100mm (standard configuration) up to 600×1000mm, with a maximum paper pile height of 750mm for uninterrupted batch production. Operating at speeds of up to 180m/min, it delivers consistent fold registration accuracy and sharp, uniform creases for consistent, production-grade output. The waste rejection variant supports a minimum sheet size of 100×120mm to match different packaging line requirements.
CE certified for safety and quality compliance, and engineered to pharmaceutical-grade production standards, this packaging insert folder features a heavy-duty industrial frame and wear-resistant components for minimal routine maintenance and stable long-term operation. It is ideal for high-volume production of carton box inserts, blister pack leaflets, pharmaceutical package inserts, product instruction leaflets and promotional pack inserts across pharmaceutical, healthcare, food and cosmetic packaging sectors.

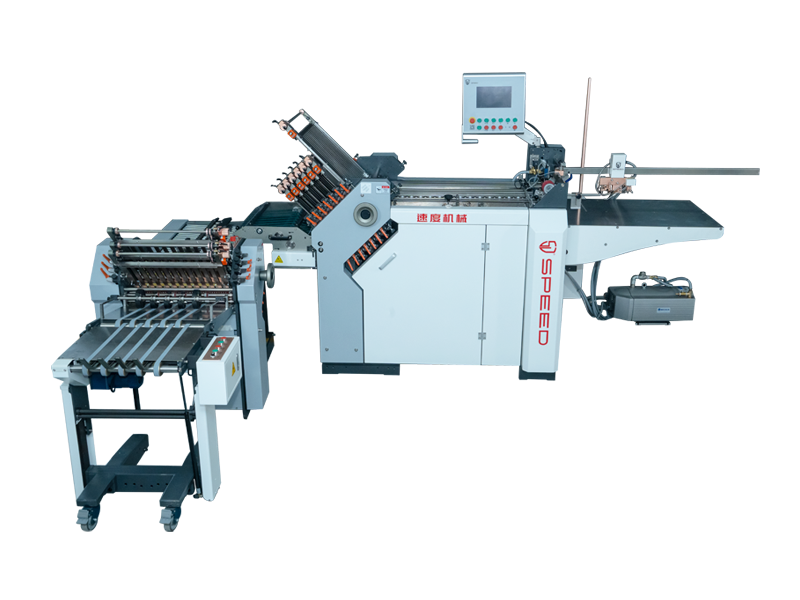

Reference specifications for T600/14+6 buckle. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Model | T600 Pharma Packaging Series |
|---|---|
| Certification | CE Certificate |
| Min. sheet size (standard) | 60 × 100 mm |
| Min. sheet size (with waste rejection) | 100 × 120 mm |
| Max. sheet size | 600 × 1000 mm |
| Max. paper pile height | 750 mm |
| Paper weight range | 35–200 gsm |
| Min. fold width | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1200 × 1500 mm |
| Overall dimensions (L*W*H) | 3200 × 2600 × 1500 mm |
Core components & optional in-line pharma packaging modules for complete leaflet folding production lines. Configurations vary by model; custom integration available.
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.
T520 Pharma Leaflet T520 pharmaceutical leaflet folding configuration for medicine instruction sheets and package inserts, with standard and waste-rejection feeding limits and optional inline packaging modules.

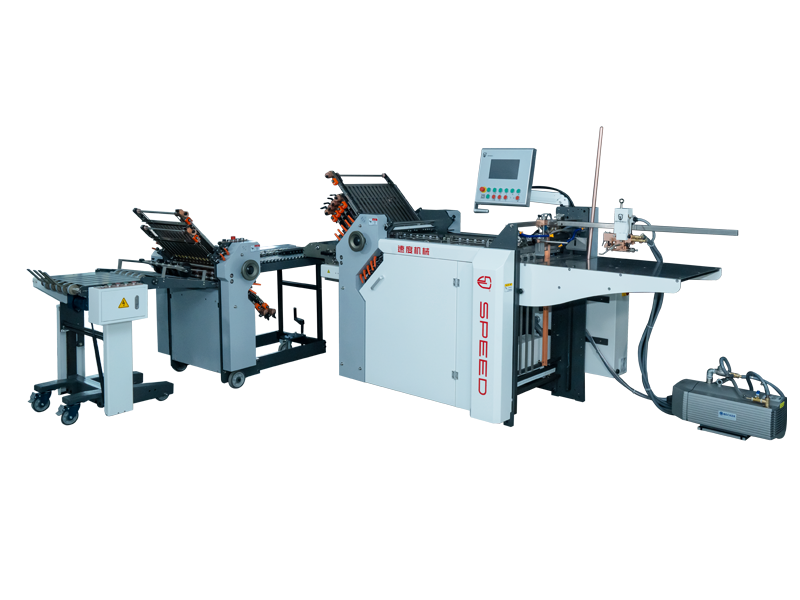

T520/10+4 buckle Pharmaceutical inline buckle folding system with 10 buckles in the first station and 4 in the second, 180m/min high-speed operation, precision fold registration, and 35–200gsm stock compatibility, ideal for patient package inserts, carton inserts and pharmaceutical outserts.

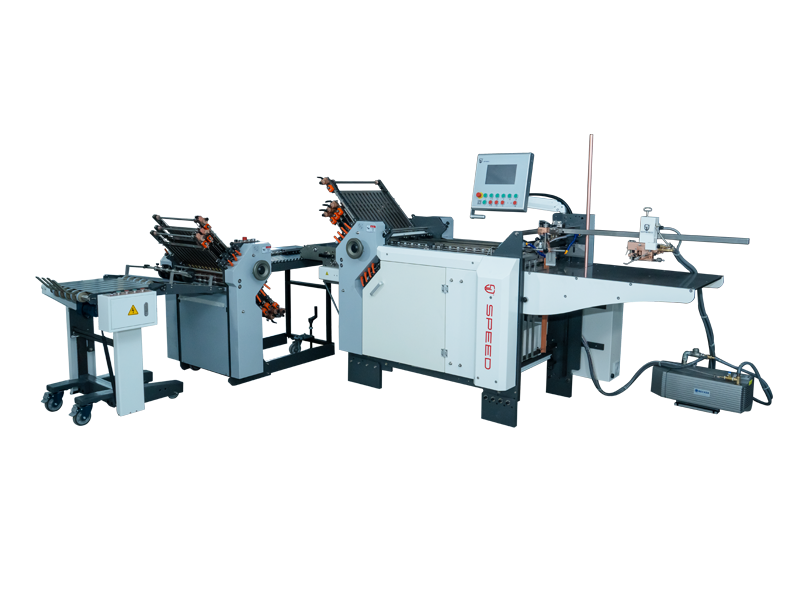

T520/8+6 buckle Pharma industrial buckle folding system with integrated waste rejection, 180m/min high-speed operation, 20mm minimum fold width. for medical instructions, pharma inserts, patient leaflets and carton inserts, ideal for pharmaceutical packaging facilities and medical printing houses.
Folded to carton-insert size from 40–120 gsm pharma paper; the highest-volume pharmaceutical folding job.
Patient information leaflets must fit the carton while retaining readable multi-panel copy. Miniature sheet handling, repeatable fold position and counted delivery are the main production checks.
The T490 and T520 cover leaflet folding. Confirm the pattern on the actual stock, then specify any required knife, pressing, sealing and delivery modules against the finished sample and packaging process.
Deep-folded leaflets of 8, 12 or 16 panels that behave like a booklet and must lie flat for packing.
An outsert folds a larger information sheet into a compact, multi-panel piece for a carton. The finished stack must lie flat and feed consistently into packing equipment.

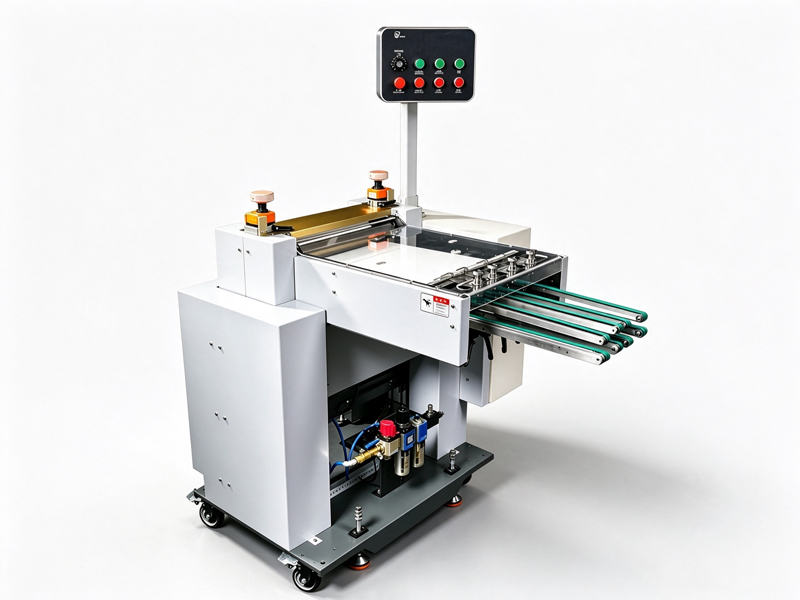

The folding platform and plate arrangement depend on the panel count and sheet. Review any knife operation and SD-XP300 pressing against the finished sample; sealing and delivery are specified with the required line configuration.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.
Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
