A dedicated flattening press for post-folding and post-stitching processing of leaflets, inserts, booklets and brochures. Removes fold bulge so finished stacks pack and feed cleanly on downstream equipment.

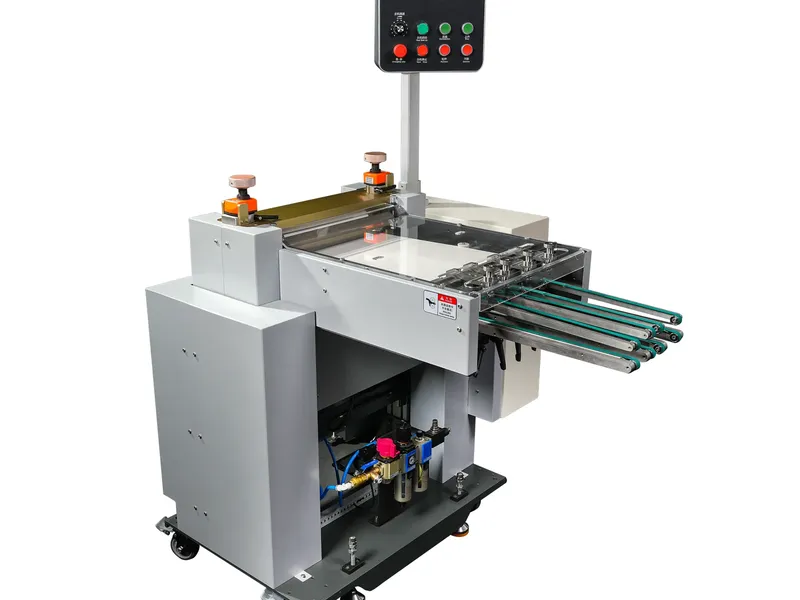

The SD-XP300 is a flattening press for post-folding and post-stitching processing. A folded leaflet or booklet traps air between its panels and springs back at the fold, which is what makes finished stacks bulge and feed badly on downstream packaging equipment. The press removes that bulge and the curl around it.
It is used both offline as a dedicated flattening unit and inline behind folding machines and stitching lines to make a continuous automatic process. Pressing force is pneumatic and set independently of the conveying speed, so thin leaflets and thicker booklets run on the same machine.
Specification: 300 mm working width (30–300 mm range), 1–20 mm finished thickness, 1–60 m/min, 1 kW at 220 V, 1120 × 1050 mm, air supply 0.4–0.6 MPa.
Reference specifications for SD-XP300. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Working width | 300 mm |
|---|---|
| Working width range | 30–300 mm |
| Pressure drive | Pneumatic |
| Max. finished thickness | 1–20 mm |
| Speed | 1–60 m/min |
| Power | 1 kW |
| Voltage | 220 V |
| Overall dimensions (L×W) | 1120 × 1050 mm |
| Air pressure | 0.4–0.6 MPa |
Solution · Pharmaceutical leaflets Pharmaceutical Leaflet Folding Machines A patient information leaflet is the hardest folding job in print. The sheet is small — often 60 × 100 mm unfolded in the miniature end of the range — the paper is thin, the fold has to be square enough to feed a cartoning line, and the fold line must not crack the ink or the fibre. Get any of those Solution · Outsert systems Pharmaceutical Outsert Folding Systems An outsert is a leaflet folded deep enough — typically eight, twelve or sixteen panels — that it becomes a small booklet in its own right, usually wrapped around or packed with the primary container. The engineering problem is that every additional panel multiplies the error of the panels before it, Deep-folded leaflets of 8, 12 or 16 panels that behave like a booklet and must lie flat for packing.
An outsert folds a larger information sheet into a compact, multi-panel piece for a carton. The finished stack must lie flat and feed consistently into packing equipment.
The folding platform and plate arrangement depend on the panel count and sheet. Where required, the SD-X250 trims the folded work and the SD-XP300 presses the finished stack.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
T520, T600 or T780 folding configurations can be paired with SD-X250 trimming or SD-XP300 pressing when the finishing requirement calls for them. Confirm the carton and stock before selecting modules.
Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
