Industrial-grade dual-station buckle folding system with vacuum stream feeder and double sheet detection, 14+6 precision buckle plates, 600mm maximum sheet width, and 28–210gsm stock compatibility. Supports brochures, flyers, booklets, manuals and catalogs in printing and packaging factory.

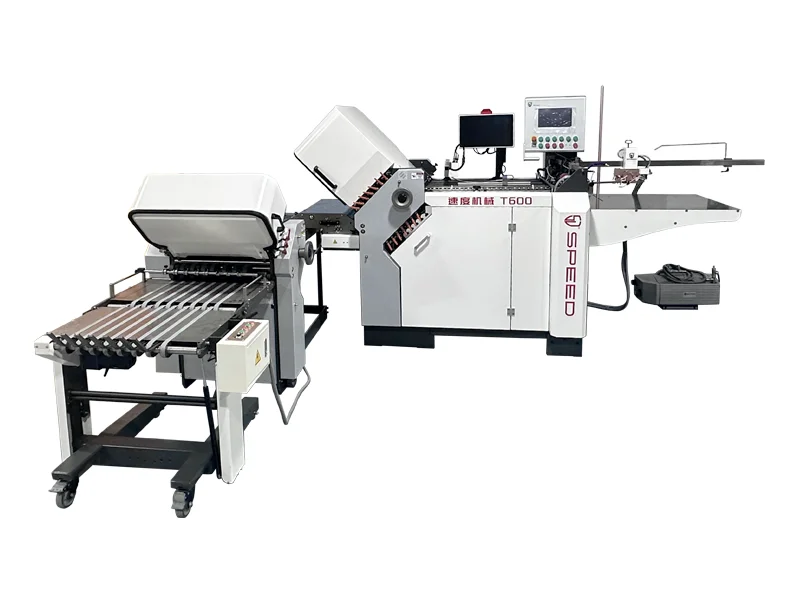

The T600 14+6 Buckle Automatic Brochure Folding Machine is a heavy-duty industrial post-press folding system engineered for print publishing houses, packaging converters and commercial printing facilities, delivering high-precision, high-throughput folding performance for medium-to-large batch production.
Equipped with 14 precision buckle plates in the first folding station and 6 buckle plates in the second station, it supports a comprehensive range of standard fold patterns including half fold, tri fold, accordion fold, double parallel fold, cross fold, gate fold and letter fold, catering to diverse folding requirements of various printed marketing and documentation materials.
It features an automatic vacuum stream feeder system that ensures stable, high-speed sheet feeding for continuous production, paired with integrated double sheet detection technology that effectively prevents misfeeds, reduces paper waste and minimizes production downtime. The machine processes 28–210gsm paper stocks with a maximum sheet width of 600mm at a running speed of up to 200m/min, delivering consistent fold registration and sharp, uniform creases for premium, market-ready output quality.
Ideally suited for the production of promotional brochures, advertising flyers, booklets, instruction manuals and product catalogs, it is built with a robust industrial frame and durable folding components, requiring minimal routine maintenance and ensuring stable long-term operation in high-volume environments. CE certified for safety and quality compliance, this 14+6 dual-station buckle folder is a reliable high-performance choice for print and packaging businesses looking to elevate their post-press folding efficiency and production capacity.
Further configuration examples are shown below. Confirm the plate set against your own fold pattern before ordering.
Reference specifications for T600/14+6 buckle. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 × 100 mm |
|---|---|
| Max. sheet size | 600 × 1000 mm |
| Max. paper pile height | 750 mm |
| Paper weight range | 35–200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1200 × 1500 mm |
| Net weight | 1200 kg |
| Optional equipment | Independent knife, vertical stacker, CCD vision inspection system |
| Certification | CE Certificate |
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.
T490 The T490 is a high-speed Semi-automatic buckle paper folding machine for commercial post-press production, delivering precision folding for leaflets, brochures, instruction manuals and pharmaceutical package inserts.
T490/20-buckle Industrial-grade 20-plate buckle folding system with semi-automatic manual feeding, 180m/min high-speed operation, 490×1000mm maximum sheet size. Supports multiple conventional fold patterns for professional brochure, leaflet, flyer and instruction sheet production.
T490/4-buckle The T490 4-buckle semi-automatic folding machine is a cost-effective industrial entry-level buckle folder, ideal for small-batch production of leaflets, flyers and instruction sheets.
Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.
Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.
T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.
Parallel and cross folds for section-sewn and perfect-bound work.
Publishing signatures require stable register through parallel and cross folds so sections collate and bind cleanly.
T600 and T780 configurations address different sheet formats. A compatible round-pile feeder can reduce stops on long batches. Set the fold pattern and feeder against the actual signature stock.
