Industrial-grade automatic buckle folding system with vacuum suction feeding and double sheet detection, 8+4 dual-station buckle plates, 180m/min high-speed operation, Supports 12+ fold patterns for brochures, flyers, booklets, manuals and catalogs in printing and packaging applications.

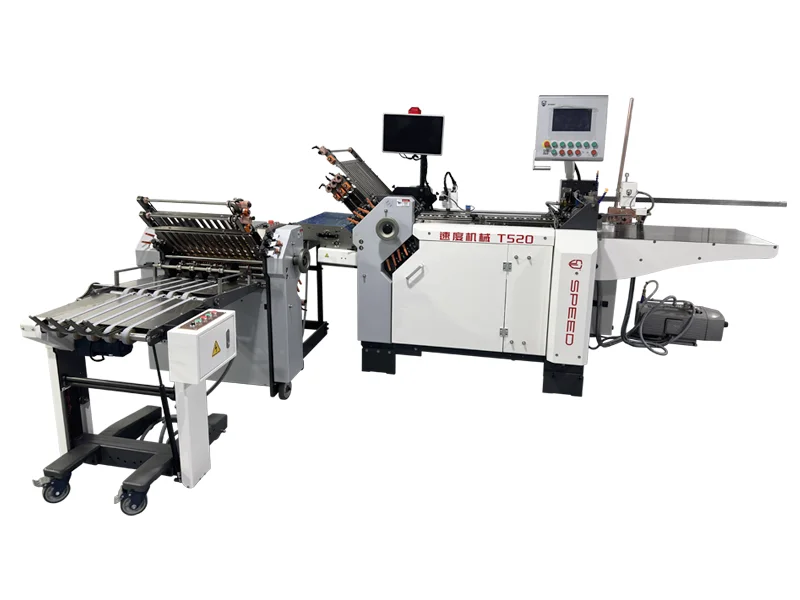

The T520 8+4 Buckle Automatic Instruction Manual Folding Machine is an industrial-grade post-press buckle folding system engineered for print publishing houses, packaging converters and commercial printing facilities, delivering high-precision, high-efficiency folding performance for medium-to-large batch production.
Equipped with 8 precision buckle plates in the first folding station and 4 buckle plates in the second station, it supports a comprehensive range of standard fold patterns including half fold, tri fold, accordion fold, double parallel fold, cross fold, gate fold and letter fold, catering to diverse folding requirements of various printed materials.
It features a cyclic vacuum suction feeding system that ensures stable, accurate sheet feeding for continuous operation, paired with built-in double sheet detection technology that effectively prevents misfeeds and reduces production waste. The machine processes 28–200gsm paper stocks with a maximum sheet size of 520×1000mm at a running speed of up to 180m/min, delivering consistent fold registration and sharp, uniform creases for premium output quality.
Ideally suited for the production of promotional brochures, flyers, booklets, instruction manuals and product catalogs, it is built with a robust industrial frame and durable folding components, requiring minimal routine maintenance and ensuring stable long-term operation.
CE certified for safety and quality compliance, it is a reliable choice for print businesses looking to enhance their post-press folding efficiency and product consistency.
Reference specifications for T520/8+4 buckle. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 × 100 mm |
|---|---|
| Max. sheet size | 520 × 1000 mm |
| Max. paper pile height | 550 mm |
| Paper weight range | 35–200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1100 × 1500 mm |
| Net weight | 990 kg |
| Optional equipment | Independent knife, vertical stacker, CCD vision inspection system |
| Certification | CE Certificate |
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.
T490 The T490 is a high-speed Semi-automatic buckle paper folding machine for commercial post-press production, delivering precision folding for leaflets, brochures, instruction manuals and pharmaceutical package inserts.
T490/20-buckle Industrial-grade 20-plate buckle folding system with semi-automatic manual feeding, 180m/min high-speed operation, 490×1000mm maximum sheet size. Supports multiple conventional fold patterns for professional brochure, leaflet, flyer and instruction sheet production.
T490/4-buckle The T490 4-buckle semi-automatic folding machine is a cost-effective industrial entry-level buckle folder, ideal for small-batch production of leaflets, flyers and instruction sheets.
Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.
Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.
T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.
Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
