This 8+6 buckle plates automatic paper folding machine delivers flexible multi-fold capabilities and precision fold quality, ideal for high-volume commercial leaflets, brochures and packaging insert production.

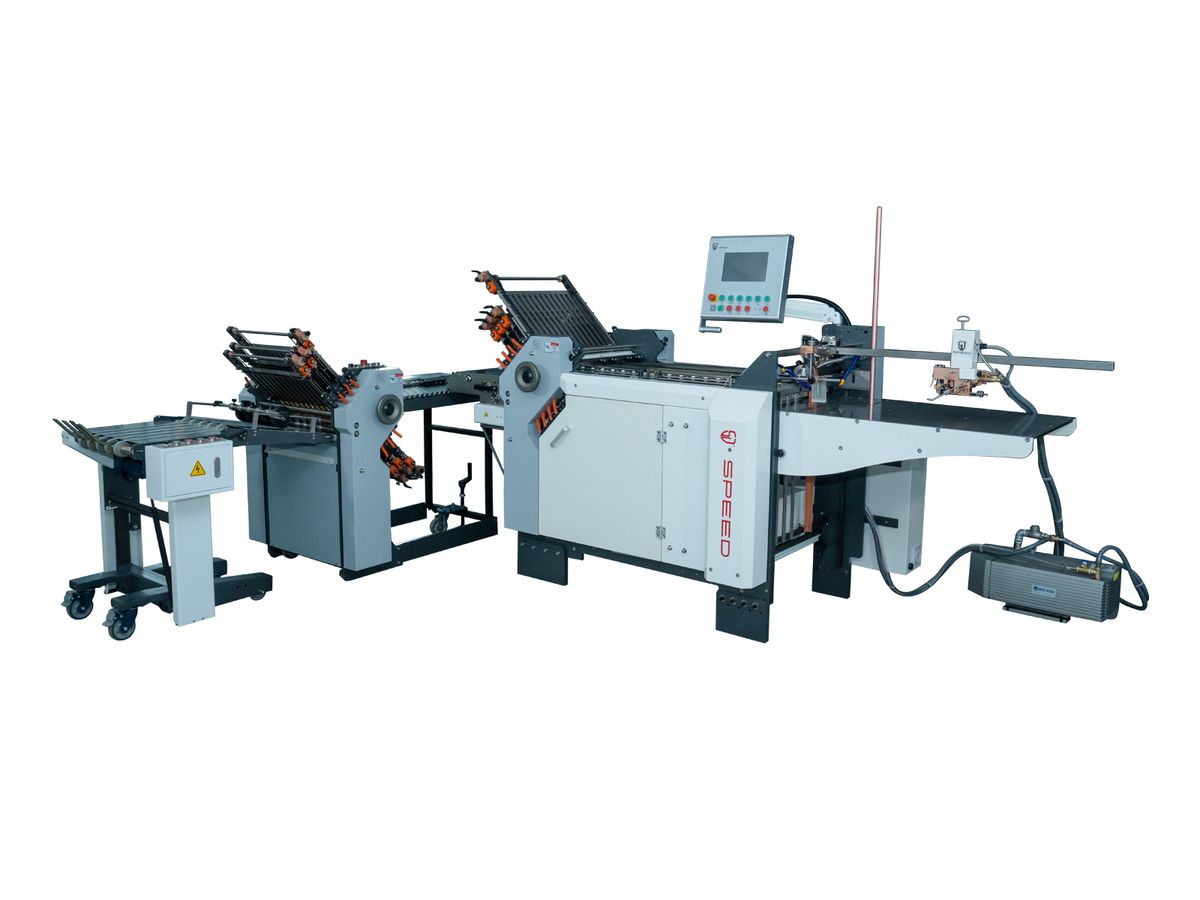

The 8+6 Buckle Plates Automatic Paper Folding Machine is a highly versatile buckle folding system purpose-built for complex multi-fold post-press finishing.
With 8 buckle plates on the first folding station and 6 on the second, it supports an extensive range of fold configurations — including parallel fold, gate fold, accordion fold, cross fold and custom multi-panel layouts — to accommodate even intricate leaflet, brochure and insert designs.
Engineered for efficient commercial production, it processes sheets up to 600×1000mm and 35–200gsm paper stocks at speeds up to 180m/min. Its 750mm high-capacity paper pile extends uninterrupted run times, while a robust suction feeder, double-sheet detection and optimized anti-jam paper path ensure steady feeding and precise fold registration with minimal downtime.
PLC-controlled with stepless speed adjustment, the machine delivers consistent, repeatable fold quality for high-volume runs. Optional equipment such as independent knife units, vertical stackers and CCD vision inspection systems can be added to build a tailored finishing line.
CE-certified and durably constructed, it is a reliable workhorse for print houses, packaging converters and commercial finishing facilities.
Further configuration examples are shown below. Confirm the plate set against your own fold pattern before ordering.
Reference specifications for T600/8+6 buckle. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 × 100 mm |
|---|---|
| Max. sheet size | 600 × 1000 mm |
| Max. paper pile height | 750 mm |
| Paper weight range | 35–200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1200 × 1500 mm |
| Net weight | 1200 kg |
| Optional equipment | Independent knife, vertical stacker, CCD vision inspection system |
| Certification | CE Certificate |
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.
T490 The T490 is a high-speed Semi-automatic buckle paper folding machine for commercial post-press production, delivering precision folding for leaflets, brochures, instruction manuals and pharmaceutical package inserts.
T490/20-buckle Industrial-grade 20-plate buckle folding system with semi-automatic manual feeding, 180m/min high-speed operation, 490×1000mm maximum sheet size. Supports multiple conventional fold patterns for professional brochure, leaflet, flyer and instruction sheet production.

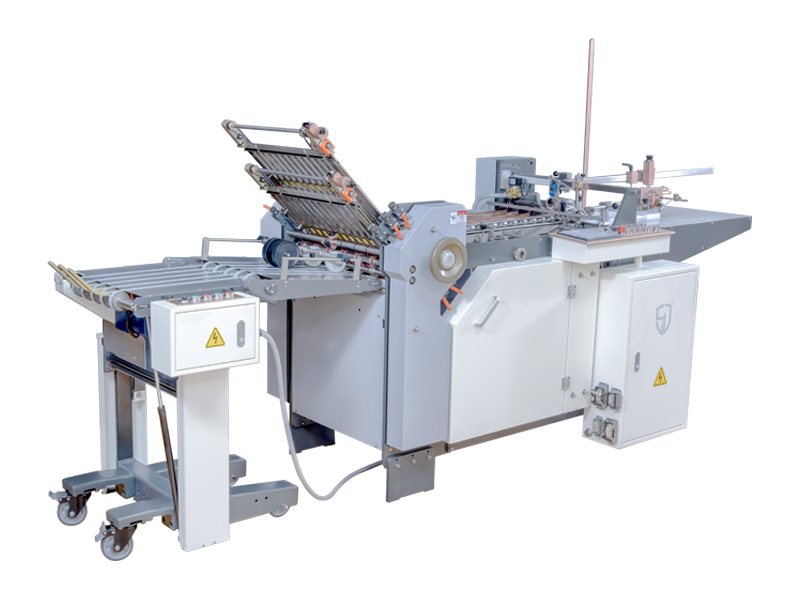

T490/4-buckle The T490 4-buckle semi-automatic folding machine is a cost-effective industrial entry-level buckle folder, ideal for small-batch production of leaflets, flyers and instruction sheets.
Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.
Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.
T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.
Parallel and cross folds for section-sewn and perfect-bound work.
Publishing signatures require stable register through parallel and cross folds so sections collate and bind cleanly.
T600 and T780 configurations address different sheet formats. A compatible round-pile feeder can reduce stops on long batches. Set the fold pattern and feeder against the actual signature stock.
Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
