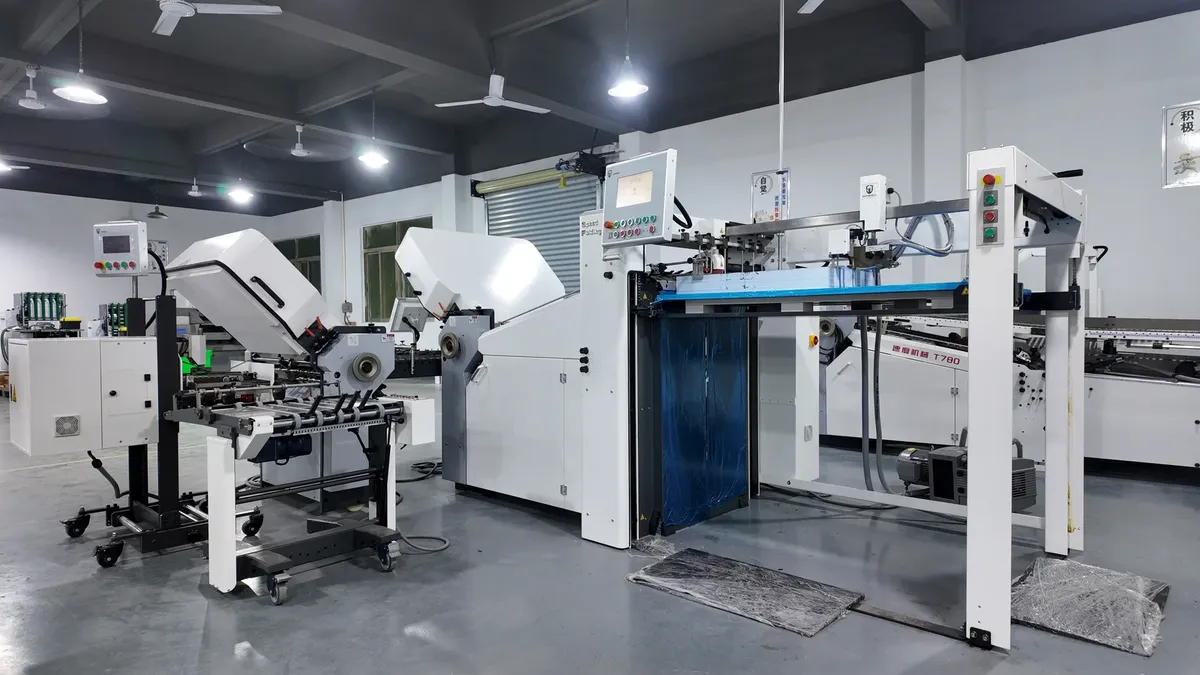

Gantry Pallet Feeder Paper Folder · Image 1 of 1

Showroom gantry feeding arrangement on a T780 folding line. The pictured host machine does not establish standalone gantry feeder specifications.

Buckle Folding Machines
SPEED

Gantry Pallet Feeder Paper Folder

Our gantry pallet feeder paper folders are heavy-duty pallet-fed folding machines for large-format and heavy-stock post-press applications.

Request a technical quote Request a fold test

Gantry Pallet Feeder Paper Folder overview

Our gantry pallet feeder paper folders are heavy-duty pallet-fed folding machines for large-format and heavy-stock post-press applications. The gantry-style pile feeder handles large paper stacks with reduced manual loading, perfect for high-volume packaging and large-format print jobs. They deliver stable, accurate folding across all standard fold patterns, and integrate smoothly with inline post-press production lines.

Detailed specifications available upon request. Send your sheet size, paper weight, fold pattern and loading requirements to review the complete line configuration.

Performance Features

  • Pallet feeding: The gantry-style pile feeder handles large paper stacks with reduced manual loading.
  • Production use: High-volume packaging and large-format print jobs.
  • Line integration: Integration with inline post-press production lines.

Technical specifications

Reference specifications for Gantry Pallet Feeder Paper Folder. Confirm the final dimensions, speed and included equipment for your ordered configuration.

Detailed specifications available upon request

The parameter table for this model is issued with the quotation so that the figures match the configuration you order. Send your sheet size, paper weight and fold pattern and we will confirm them, or run a fold test on your own stock.

Request the datasheet

Components & configurations

Component availability and inclusion depend on the confirmed machine configuration.

Basic Structure

Second Folding Unit

1.Second Folding Unit

  • Expands folding combinations to support complex fold patterns and custom applications
  • Enables multi-stage folding for sophisticated print finishing production
  • Reduces secondary processing steps to improve overall production efficiency
Electronic Feeder

2.Electronic Feeder

  • Precisely controls sheet feeding speed and spacing for consistent registration
  • Minimizes double-sheet and misalignment errors even at high production speeds
  • Ensures stable feeding across a wide range of paper grammages and stock types
Three-hole Suction Wheel

3.Three-hole Suction Wheel

  • Separates and picks up single sheets via vacuum suction to prevent double feeding
  • Works reliably with a wide range of paper grammages without slipping
  • Ensures smooth, accurate sheet pickup for continuous high-speed operation
Buckle Folding Plates

4.Buckle Folding Plates

  • Precision-engineered buckle structure delivers sharp, uniform fold creases
  • Enables fast format adjustment to minimize job changeover time
  • Supports all standard folding styles and custom fold configurations
Folding Rollers

5.Folding Rollers

  • Precision-machined wear-resistant rollers deliver uniform pressure
  • Produce clean, mark-free folds on all compatible paper stocks
  • Retain long-term accuracy under continuous heavy-duty production
Transfer Bridge

6.Transfer Bridge

  • Transfers sheets smoothly between folding units with zero positional deviation
  • Prevents paper skew during multi-stage conveyance
  • Preserves consistent folding accuracy across the entire production process
Industrial-Grade Electrical Control Cabinet

7.Industrial-Grade Electrical Control Cabinet

  • Built with world-renowned brand electrical components for exceptional stability
  • Delivers strong anti-interference performance and extended service life
  • Cuts unplanned downtime and reduces long-term maintenance costs

Optional Configurations

Automatic Sheet Feeder

1.Automatic Sheet Feeder

  • Enables fully automatic continuous feeding with automatic sheet alignment
  • Significantly reduces manual loading labor and operator workload
  • Delivers stable, efficient feeding for extended uninterrupted production
CCD Vision Inspection System

2.CCD Vision Inspection System

  • Performs real-time high-precision detection of fold accuracy and defects
  • Automatically rejects non-conforming sheets to boost production yield
  • Eliminates manual inspection labor and lowers quality control costs
Independent Cutting Unit

3.Independent Cutting Unit

  • Stand-alone module delivers high-precision, burr-free paper cutting
  • Can be enabled or disabled independently to match production workflows
  • Allows flexible adjustment to suit different job specifications
High-Speed Transfer Conveyor

4.High-Speed Transfer Conveyor

  • Transfers sheets rapidly and steadily between process stations
  • Maintains precise positioning to preserve folding accuracy
  • Increases overall production throughput for high-speed folding lines
Ultrasonic Double Sheet Sensor

5.Ultrasonic Double Sheet Sensor

  • Accurately detects paper thickness and double-sheet conditions
  • Features fast response, immune to paper color and transparency differences
  • Effectively prevents feeding errors for uninterrupted production
Glue Application System

6.Glue Application System

  • Precisely controls glue volume and application position
  • Creates uniform glue lines for consistent, clean bonding without overflow
  • Compatible with various paper types and glue formulations
Inline Labeling Unit

7.Inline Labeling Unit

  • Operates in sync with the folding process for fully integrated production
  • Applies labels with precise registration and bubble-free adhesion
  • Eliminates offline labeling steps to boost overall production efficiency
Vertical Stacker Delivery

8.Vertical Stacker Delivery

  • Vertical stacking design delivers neat, aligned paper piles
  • High stacking capacity reduces manual unloading frequency
  • Supports continuous bulk production and streamlines downstream processing

Other machines in this range

All buckle folding machines →

Plan your folding job with the Gantry Pallet Feeder Paper Folder

Send your sheet size, finished size, paper weight and fold pattern. Our team can review the machine configuration and arrange a sample test for your job.
