A flexible medium-small folder purpose-built for pharmaceutical leaflets and mixed print production. Fully inline compatible with a flattening press, parallel cutter, labelling machine, hot-melt gluing machine and vertical stacker.
Flexible medium-small paper folder, purpose-built for pharmaceutical leaflets and mixed print production. Fully inline compatible with flattening press, parallel cutter, labelling machine, hot-melt gluing machine and vertical stacker. Suitable for package leaflets, product manuals, brochures and direct mail; supports gate, accordion, cross and statement folds.
Sheet range 60 × 100 mm to 520 × 1000 mm, 550 mm pile, 180 m/min, 32 mm rollers and a 20 mm minimum buckle fold — which is what lets one machine serve miniature pharma leaflets and commercial inserts.
The pharmaceutical line built on this platform adds a parallel knife unit, a pressing machine and a vertical stacker, giving a line footprint of 3200 × 2600 × 1500 mm. The folder alone is 4650 × 1100 × 1500 mm; 3.5 kW at 380 V.
Reference specifications for T520. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 × 100 mm |
|---|---|
| Max. sheet size | 520 × 1000 mm |
| Max. paper pile height | 550 mm |
| Paper weight range | 28–200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1100 × 1500 mm |
| Net weight | 990 kg |
Examples named in this model's product overview. The ordered plate arrangement, paper and finished format determine the actual fold set; confirm each job with a fold test.
Gate fold Two panels fold inward and meet in the centre — the classic programme insert.
Accordion fold Concertina panels alternating in direction — 风琴折.
Cross fold A parallel fold followed by a fold at right angles on the second unit. Selected items mentioned in this model's published overview and features. Their labels describe the relationship, not a standard bill of materials; confirm the ordered configuration with our team.

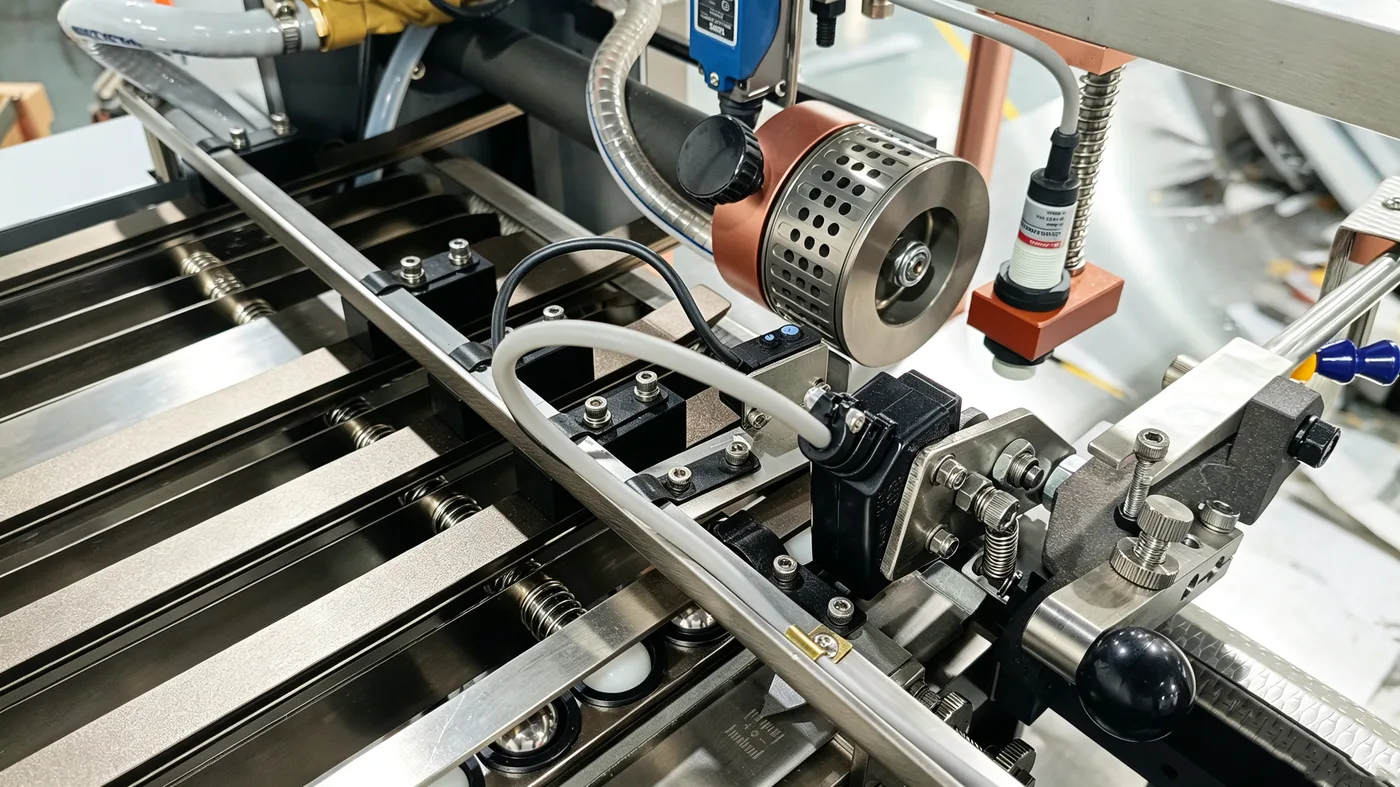

described feature Three-Hole Suction Wheel Feeding system described for the T520.
described feature Buckle Folding Plates Plate count depends on the ordered configuration.
described feature Folding Rollers Roller construction is described in the T520 specification.
available option CCD Vision Inspection System CCD inspection is listed as an option.

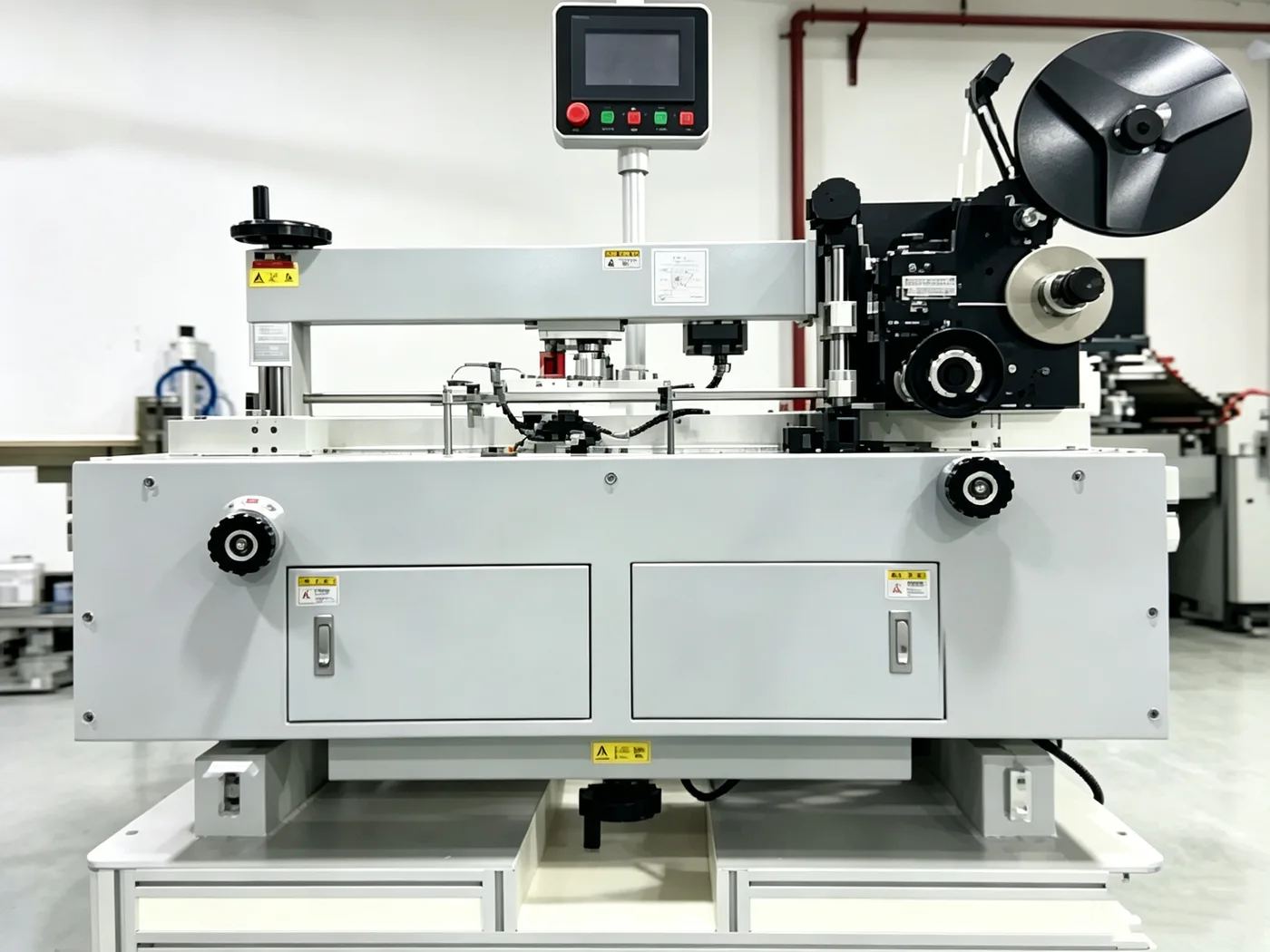

line integration Inline Labeling Unit Inline compatibility is described; the unit is specified separately.

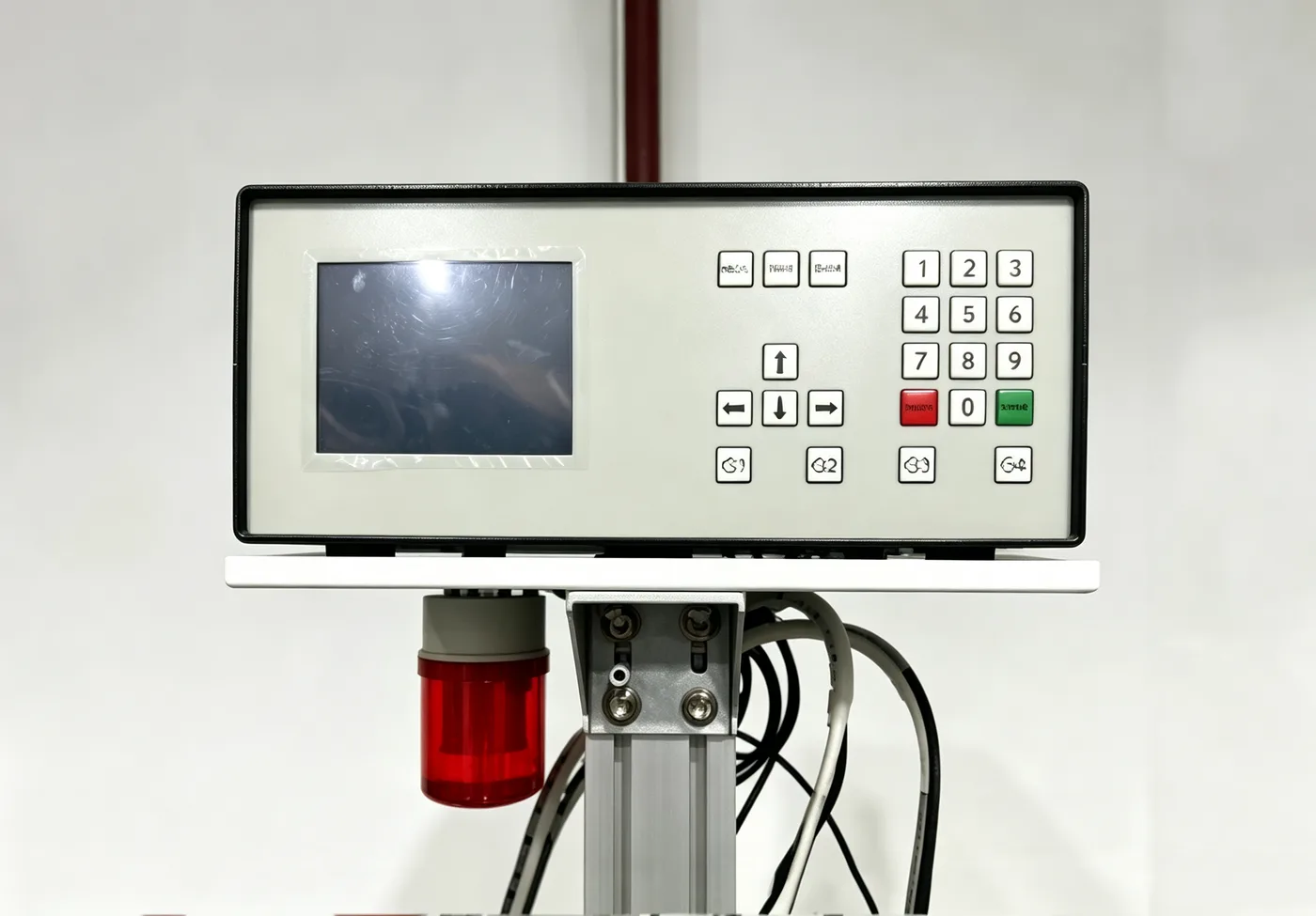

line integration Glue Application System Hot-melt gluing compatibility is described; confirm the required system.
line integration Vertical Stacker Delivery Included in the described pharmaceutical line, not every folder configuration. Production and demonstration footage related to this model. YouTube loads only when you press play.
T520 running 10H6W-F
T520 with the 10H6W-F plate configuration in high-speed production.
Watch on YouTube →Pharmaceutical leaflet and insert folding line
The pharmaceutical folding line as a system: miniature buckle folding, parallel knife trimming and press flattening working as one process.
Watch on YouTube →
