Industrial two-station commercial buckle folding machine with 10 buckles in the first station and 6 buckles in the second, semi-automatic manual feeding, Supports multiple fold patterns for commercial brochures, flyers, instruction sheets and booklets.

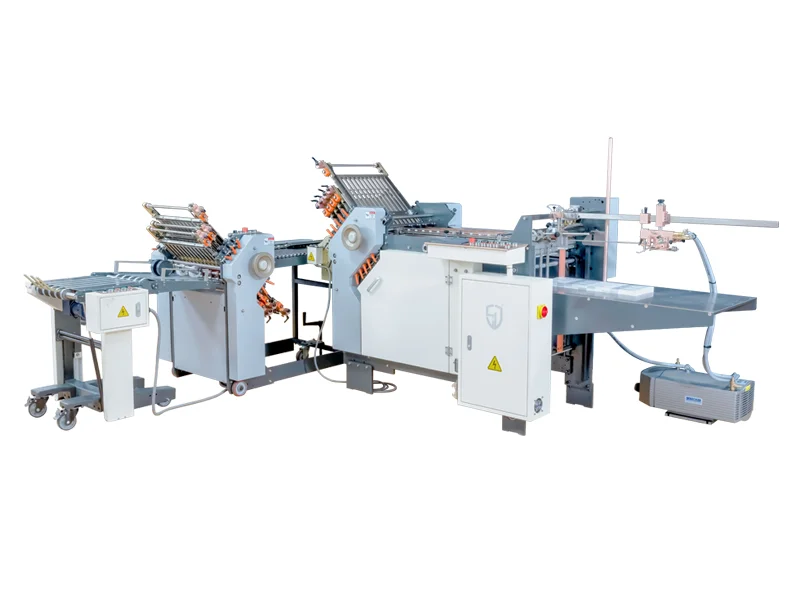

The T490/10H6W-F High Speed Commercial Buckle Folding Machine is an industrial-grade two-station buckle folder engineered for medium-to-large batch post-press finishing, offering a high-efficiency, cost-effective solution for commercial print shops and binderies specializing in brochures, flyers, instruction sheets and booklets.
Equipped with 10 precision buckle plates in the first folding station and 6 buckle plates in the second station, it supports a comprehensive range of fold patterns including parallel fold, accordion fold, cross fold, half fold and tri fold, catering to complex folding demands of various commercial printed materials. It processes 35–200gsm paper stocks with a maximum sheet width of 490mm at a running speed of up to 180m/min, delivering consistent fold registration and sharp, uniform creases for steady, premium output quality.
Featuring a semi-automatic feeding design, it enables flexible manual sheet loading and quick job changeover between different formats, making it perfectly suited for diversified commercial orders such as promotional brochures, advertising flyers, product instruction sheets and small booklets. Built with a robust industrial frame and durable folding components, it requires minimal routine maintenance and ensures stable long-term operation in high-volume production environments.
CE certified for safety and quality compliance, this 10+6 dual-station high-speed buckle folder is a practical commercial-grade choice for print businesses looking to upgrade their post-press folding capabilities with high throughput and versatile folding performance.
Further configuration examples are shown below. Confirm the plate set against your own fold pattern before ordering.
Reference specifications for T490/10H6W-F. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 × 100 mm |
|---|---|
| Max. sheet size | 490 × 1000 mm |
| Max. paper pile height | 550 mm |
| Paper weight range | 35–200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1100 × 1500 mm |
| Net weight | 990 kg |
| Optional equipment | Independent knife, vertical stacker, CCD vision inspection system |
| Certification | CE Certificate |
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.
T490 The T490 is a high-speed Semi-automatic buckle paper folding machine for commercial post-press production, delivering precision folding for leaflets, brochures, instruction manuals and pharmaceutical package inserts.
T490/20-buckle Industrial-grade 20-plate buckle folding system with semi-automatic manual feeding, 180m/min high-speed operation, 490×1000mm maximum sheet size. Supports multiple conventional fold patterns for professional brochure, leaflet, flyer and instruction sheet production.
T490/4-buckle The T490 4-buckle semi-automatic folding machine is a cost-effective industrial entry-level buckle folder, ideal for small-batch production of leaflets, flyers and instruction sheets.
Folded to carton-insert size from 40–120 gsm pharma paper; the highest-volume pharmaceutical folding job.
Patient information leaflets must fit the carton while retaining readable multi-panel copy. Miniature sheet handling, repeatable fold position and counted delivery are the main production checks.
The T490 and T520 cover leaflet folding. Confirm the pattern on the actual stock, then specify any required knife, pressing, sealing and delivery modules against the finished sample and packaging process.
Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.
Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.
T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.
Parallel and cross folds for section-sewn and perfect-bound work.
Publishing signatures require stable register through parallel and cross folds so sections collate and bind cleanly.
T600 and T780 configurations address different sheet formats. A compatible round-pile feeder can reduce stops on long batches. Set the fold pattern and feeder against the actual signature stock.
Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
