Industrial two-station buckle folding machine with 6 buckles in the first station and 4 buckles in the second, semi-automatic manual feeding, 180m/min high-speed operation, 35–200gsm stock compatibility. Supports multiple fold patterns for professional brochures, flyers and instruction sheets.

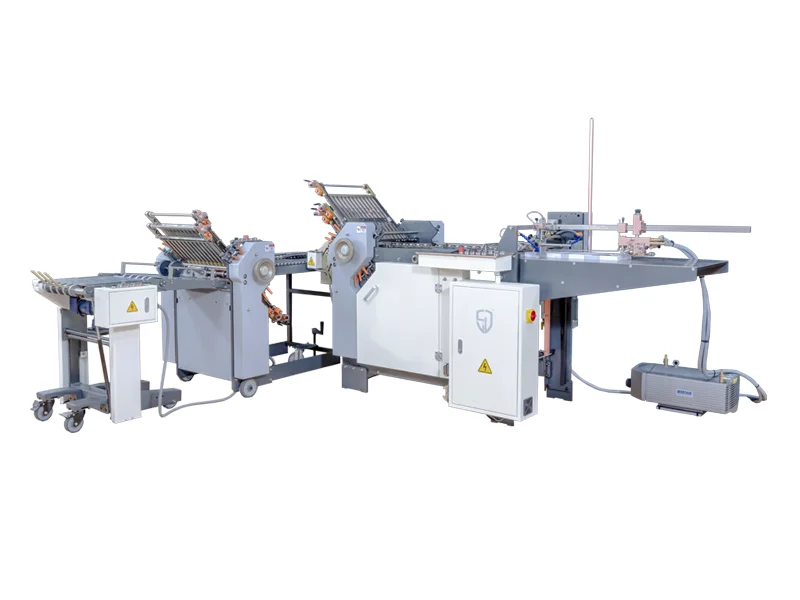

The 6+4 Buckle Semi-Automatic Paper Folding Machine is an industrial-grade two-station buckle folder engineered for small-to-medium batch post-press finishing, offering a versatile, cost-effective solution for print shops and commercial binderies specializing in brochures, flyers and instruction sheets.
Equipped with 6 precision buckle plates in the first folding station and 4 buckle plates in the second station, it supports a comprehensive range of fold patterns including parallel fold, accordion fold, cross fold, half fold and tri fold, catering to diverse folding demands of various printed marketing and documentation materials. It processes 35–200gsm paper stocks with a maximum sheet width of 490mm at a running speed of up to 180m/min, delivering consistent fold registration and sharp, uniform creases for steady, professional output quality.
Featuring a semi-automatic feeding design, it enables flexible manual sheet loading and quick job changeover between different formats, making it perfectly suited for diversified orders such as promotional brochures, single-page flyers, product instruction sheets and small catalogs. Built with a robust industrial frame and durable folding components, it requires minimal routine maintenance and ensures stable long-term operation.
CE certified for safety and quality compliance, this 6+4 dual-station buckle folder is a practical mid-range choice for print businesses looking to expand their post-press folding capabilities with multi-format versatility on a budget.
Further configuration examples are shown below. Confirm the plate set against your own fold pattern before ordering.
Reference specifications for T490/6H4W-F. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 × 100 mm |
|---|---|
| Max. sheet size | 490 × 1000 mm |
| Max. paper pile height | 550 mm |
| Paper weight range | 35–200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1100 × 1500 mm |
| Net weight | 990 kg |
| Optional equipment | Independent knife, vertical stacker, CCD vision inspection system |
| Certification | CE Certificate |
Component availability and inclusion depend on the confirmed machine configuration.
