The T520 12+6 buckle instruction leaflet folding machine delivers accurate multi-fold capabilities and consistent 180m/min output, engineered for high-volume production of instruction leaflets, product manuals and user guides.

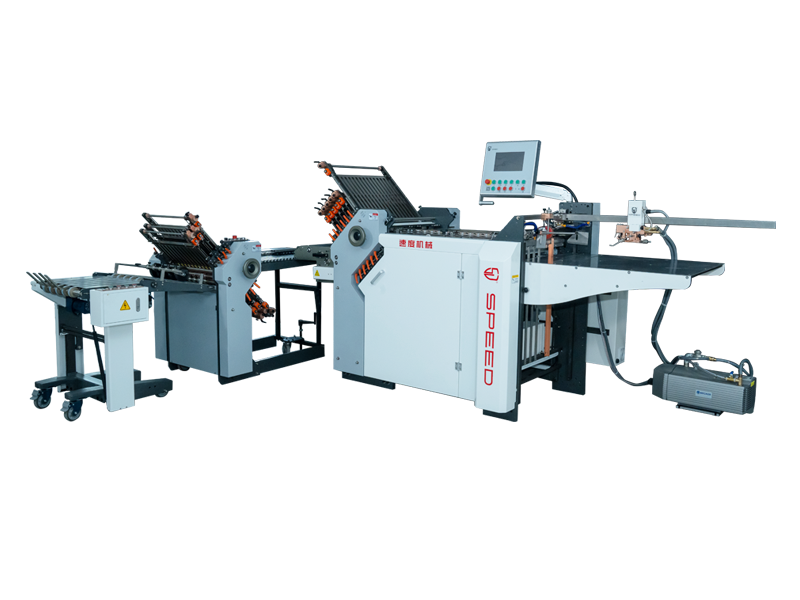

The T520 12+6 Buckle Instruction Leaflet Folding Machine is a professional-grade automatic buckle folder purpose-built for high-precision post-press finishing, specialized in processing instruction leaflets, product manuals, user guides and operational booklets.
It features a two-station folding structure with 12 buckles at the first folding station and 6 buckles at the second folding station, supporting a full range of fold patterns including parallel fold, cross fold, accordion fold, gate fold, half fold and tri fold to accommodate intricate multi-panel manual layouts. It processes 35–200gsm paper stocks from 60×100mm up to 520×1000mm at a top speed of 180m/min, delivering precise fold registration and sharp, uniform creases for clean, professional print finishing quality.
Equipped with a high-performance suction feeder, double-sheet detection and an optimized anti-jam paper path, it ensures stable uninterrupted feeding with a 550mm maximum paper pile height, minimizing reloading downtime and manual intervention. Controlled by a PLC system with stepless speed adjustment, it enables quick job changeover and flexible parameter tuning to adapt to different paper sizes and fold specifications.
Optional configurations including independent knife units, vertical stackers and CCD vision inspection systems are available to build a fully customized manual finishing line.
CE-certified and durably constructed for continuous commercial operation, this 12+6 buckle folder is a reliable workhorse for print houses, commercial printing facilities and industrial manufacturers requiring consistent high-quality manual folding production.
Further configuration examples are shown below. Confirm the plate set against your own fold pattern before ordering.
Reference specifications for T520/12+6 buckle. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 × 100 mm |
|---|---|
| Max. sheet size | 520 × 1000 mm |
| Max. paper pile height | 550 mm |
| Paper weight range | 35–200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1100 × 1500 mm |
| Net weight | 990 kg |
| Optional equipment | Independent knife, vertical stacker, CCD vision inspection system |
| Certification | CE Certificate |
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.
T490 The T490 is a high-speed Semi-automatic buckle paper folding machine for commercial post-press production, delivering precision folding for leaflets, brochures, instruction manuals and pharmaceutical package inserts.
T490/20-buckle Industrial-grade 20-plate buckle folding system with semi-automatic manual feeding, 180m/min high-speed operation, 490×1000mm maximum sheet size. Supports multiple conventional fold patterns for professional brochure, leaflet, flyer and instruction sheet production.
T490/4-buckle The T490 4-buckle semi-automatic folding machine is a cost-effective industrial entry-level buckle folder, ideal for small-batch production of leaflets, flyers and instruction sheets.
Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.
Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.
T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.
Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
