The T600 10-buckle automatic instruction leaflet folding machine delivers 180m/min high-speed precision folding with a 750mm high-capacity feeder, ideal for product manuals, brochures and commercial print runs.

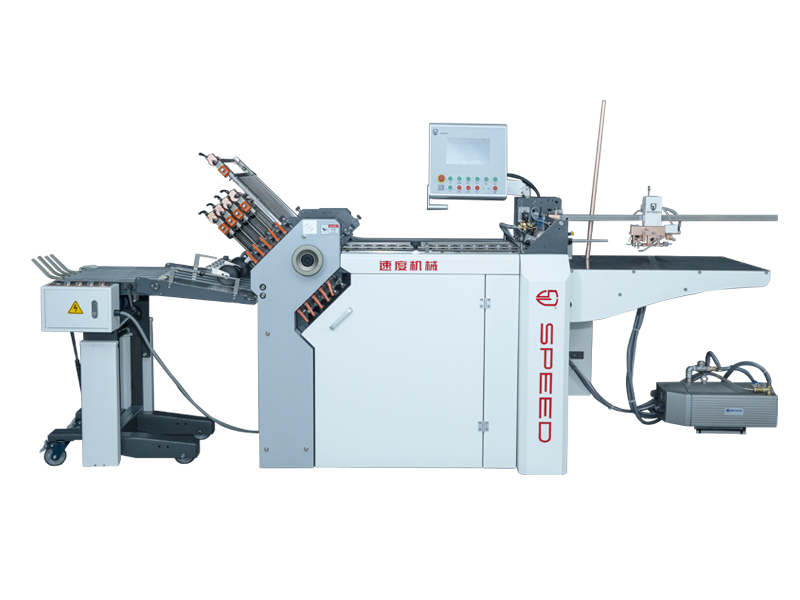

The T600 10-Buckle Instruction Leaflet Folding Machine is a high-performance automatic buckle folder engineered for professional post-press finishing, optimized specifically for instruction leaflets, product manuals and complex commercial print materials.
With a 10-buckle plate configuration for versatile multi-fold capabilities, it supports parallel fold, cross fold, accordion fold, gate fold and double parallel fold to accommodate intricate leaflet and manual layouts. It processes 35–200gsm paper stocks from 60×100mm up to 600×1000mm at a top speed of 180m/min, delivering consistent fold registration for reliable, uniform output quality.
Its 750mm high-capacity paper pile feeder extends uninterrupted production runtime and reduces reloading downtime, paired with a precision suction feeding system, double-sheet detection and optimized anti-jam paper path for stable operation.
PLC-controlled with stepless speed adjustment, it supports optional configurations including independent knife units, vertical stackers and CCD vision inspection systems.
CE-certified and durably constructed, it is a trusted workhorse for print houses and commercial printing facilities.
Further configuration examples are shown below. Confirm the plate set against your own fold pattern before ordering.
Reference specifications for T600/10 buckle. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 × 100 mm |
|---|---|
| Max. sheet size | 600 × 1000 mm |
| Max. paper pile height | 750 mm |
| Paper weight range | 35–200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1200 × 1500 mm |
| Net weight | 1200 kg |
| Optional equipment | Independent knife, vertical stacker, CCD vision inspection system |
| Certification | CE Certificate |
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.
T490 The T490 is a high-speed Semi-automatic buckle paper folding machine for commercial post-press production, delivering precision folding for leaflets, brochures, instruction manuals and pharmaceutical package inserts.
T490/20-buckle Industrial-grade 20-plate buckle folding system with semi-automatic manual feeding, 180m/min high-speed operation, 490×1000mm maximum sheet size. Supports multiple conventional fold patterns for professional brochure, leaflet, flyer and instruction sheet production.
T490/4-buckle The T490 4-buckle semi-automatic folding machine is a cost-effective industrial entry-level buckle folder, ideal for small-batch production of leaflets, flyers and instruction sheets.
Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.
Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.
T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.
Parallel and cross folds for section-sewn and perfect-bound work.
Publishing signatures require stable register through parallel and cross folds so sections collate and bind cleanly.
T600 and T780 configurations address different sheet formats. A compatible round-pile feeder can reduce stops on long batches. Set the fold pattern and feeder against the actual signature stock.
Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
