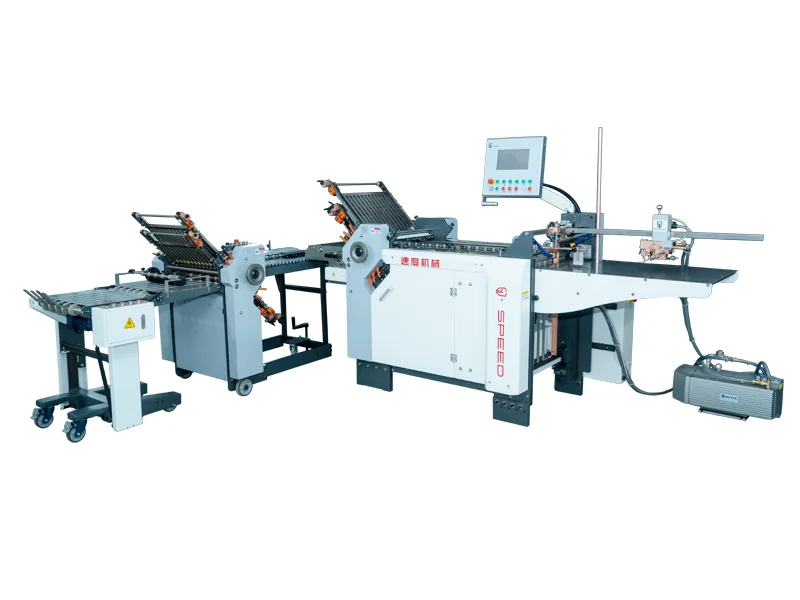

T600 6+4 Buckle Booklet Folding Machine · Image 1 of 6

Buckle Folding Machines
SPEED T600/6+4 buckle

T600 6+4 Buckle Booklet Folding Machine

The T600 6+4 buckle automatic booklet folding machine delivers versatile multi-fold capabilities and 180m/min high-speed output, ideal for high-volume production of booklets, leaflets, flyers and promotional print materials.

Max. speed
180 m/min
Min. sheet size
60 × 100 mm
Max. sheet size
600 × 1000 mm
Max. paper pile height
750 mm
Request a technical quote Discuss line integration

T600/6+4 buckle overview

Overview

The T600 6+4 Buckle Booklet Folding Machine is a professional-grade automatic buckle folder engineered for high-efficiency commercial post-press finishing, optimized specifically for booklets, leaflets, flyers and promotional print products.

Built with a modular 6+4 buckle plate configuration across two folding stations, it supports a comprehensive range of fold patterns including parallel fold, cross fold, accordion fold, gate fold and letter fold, enabling flexible multi-panel layouts to meet diverse booklet and promotional design requirements. It processes 35–200gsm paper stocks from 60×100mm up to 600×1000mm at a top speed of 180m/min, delivering precise fold registration and sharp, uniform creases for consistent, professional print finishing quality.

Equipped with a high-performance suction feeder, double-sheet detection and an optimized anti-jam paper path, it ensures stable uninterrupted feeding with a 750mm maximum paper pile height, reducing frequent reloading downtime and minimizing manual intervention. Controlled by a PLC system with stepless speed adjustment, it allows quick job changeover and flexible setup for different production specifications.

Optional configurations including independent knife units, vertical stackers and CCD vision inspection systems are available to build a customized finishing line.

CE-certified and durably constructed for continuous heavy-duty operation, the T600 6+4 buckle folder is a reliable workhorse for print houses, commercial printing facilities and promotional product manufacturers.

Performance Features

  • Modular folding units: 4~20 buckle plates optional for the first folding station, 4~10 buckle plates optional for the second station, compatible with a wide range of folding patterns.
  • Stable sheet feeding: High-performance feeder with 3-hole suction wheels delivers precise sheet positioning and adapts to various paper grammages.
  • High-wear folding rollers: Helical-groove steel-base polyurethane rollers with 75% larger paper contact area, featuring anti-slip, wear-resistant and rust-proof performance.
  • Automatic pile control: Dual automatic adjustment of pile height enables uninterrupted feeding and reduces manual intervention.
  • Electrical control: PLC with variable frequency stepless speed control, standard overload protection, and flexible operating speed adjustment.
  • Detection and protection: High-sensitivity double sheet and paper jam automatic stop system ensures stable operation; CCD Vision Inspection System is available as an option.
  • Process options: Supports scoring, perforating and slitting functions, covering diverse post-press processing scenarios with one machine.
  • Belt drive: Belt drive structure guarantees low noise and low vibration; precision-engineered sheet feeding angle effectively prevents paper wrinkling.

Additional configurations

Further configuration examples are shown below. Confirm the plate set against your own fold pattern before ordering.

Automatic Paper Folding Machine
T600 configuration: 490/600 shared 10+6 buckles
T490 and T600 paper folding machine configuration
T600 configuration: 490/600 shared 12+4 buckles

Technical specifications

Reference specifications for T600/6+4 buckle. Confirm the final dimensions, speed and included equipment for your ordered configuration.

T600 6+4 Buckle Booklet Folding Machine technical specifications
Min. sheet size 60 × 100 mm
Max. sheet size 600 × 1000 mm
Max. paper pile height 750 mm
Paper weight range 35–200 gsm
Min. buckle fold size 20 mm
Folding roller diameter 32 mm
Max. speed 180 m/min
Machine power 3.5 kW
Voltage 380 V
Overall dimensions (L×W×H) 4650 × 1200 × 1500 mm
Net weight 1200 kg
Optional equipment Independent knife, vertical stacker, CCD vision inspection system
Certification CE Certificate

Components & configurations

Component availability and inclusion depend on the confirmed machine configuration.

Basic Structure

Second folding unit with buckle plates and a transfer table

1.Second Folding Unit

  • Expands folding combinations to support complex fold patterns and custom applications
  • Enables multi-stage folding for sophisticated print finishing production
  • Reduces secondary processing steps to improve overall production efficiency
Electronic sheet feeder above the paper pile

2.Electronic Feeder

  • Precisely controls sheet feeding speed and spacing for consistent registration
  • Minimizes double-sheet and misalignment errors even at high production speeds
  • Ensures stable feeding across a wide range of paper grammages and stock types
Vacuum suction wheel and sheet feeding assembly

3.Three-hole Suction Wheel

  • Separates and picks up single sheets via vacuum suction to prevent double feeding
  • Works reliably with a wide range of paper grammages without slipping
  • Ensures smooth, accurate sheet pickup for continuous high-speed operation
Buckle folding plates on a SPEED paper folding machine

4.Buckle Folding Plates

  • Precision-engineered buckle structure delivers sharp, uniform fold creases
  • Enables fast format adjustment to minimize job changeover time
  • Supports all standard folding styles and custom fold configurations
Folding rollers inside a SPEED paper folding unit

5.Folding Rollers

  • Precision-machined wear-resistant rollers deliver uniform pressure
  • Produce clean, mark-free folds on all compatible paper stocks
  • Retain long-term accuracy under continuous heavy-duty production
Transfer bridge between folding units

6.Transfer Bridge

  • Transfers sheets smoothly between folding units with zero positional deviation
  • Prevents paper skew during multi-stage conveyance
  • Preserves consistent folding accuracy across the entire production process
Electrical components inside the machine control cabinet

7.Industrial-Grade Electrical Control Cabinet

  • Built with world-renowned brand electrical components for exceptional stability
  • Delivers strong anti-interference performance and extended service life
  • Cuts unplanned downtime and reduces long-term maintenance costs

Optional Configurations

Automatic sheet feeder above the paper pile

1.Automatic Sheet Feeder

  • Enables fully automatic continuous feeding with automatic sheet alignment
  • Significantly reduces manual loading labor and operator workload
  • Delivers stable, efficient feeding for extended uninterrupted production
Operator checking sheets with the CCD inspection monitor

2.CCD Vision Inspection System

  • Performs real-time high-precision detection of fold accuracy and defects
  • Automatically rejects non-conforming sheets to boost production yield
  • Eliminates manual inspection labor and lowers quality control costs
Independent cutting unit on a mobile stand

3.Independent Cutting Unit

  • Stand-alone module delivers high-precision, burr-free paper cutting
  • Can be enabled or disabled independently to match production workflows
  • Allows flexible adjustment to suit different job specifications
High-speed sheet transfer conveyor

4.High-Speed Transfer Conveyor

  • Transfers sheets rapidly and steadily between process stations
  • Maintains precise positioning to preserve folding accuracy
  • Increases overall production throughput for high-speed folding lines
Ultrasonic double-sheet sensor above the sheet path

5.Ultrasonic Double Sheet Sensor

  • Accurately detects paper thickness and double-sheet conditions
  • Features fast response, immune to paper color and transparency differences
  • Effectively prevents feeding errors for uninterrupted production
Glue application system control panel

6.Glue Application System

  • Precisely controls glue volume and application position
  • Creates uniform glue lines for consistent, clean bonding without overflow
  • Compatible with various paper types and glue formulations
Inline labeling unit with a label reel

7.Inline Labeling Unit

  • Operates in sync with the folding process for fully integrated production
  • Applies labels with precise registration and bubble-free adhesion
  • Eliminates offline labeling steps to boost overall production efficiency
Vertical stacker delivery unit

8.Vertical Stacker Delivery

  • Vertical stacking design delivers neat, aligned paper piles
  • High stacking capacity reduces manual unloading frequency
  • Supports continuous bulk production and streamlines downstream processing

T600/6+4 buckle production & demonstration

Product footage supplied with this model. Press play to view the video.

Automatic Paper Folding Machine

Other machines in this range

All buckle folding machines →

Folded product applications

Brochures and catalogues

Brochures and catalogues

Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.

Production considerations

Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.

T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.

Packaging inserts

Packaging inserts

Leaflets and promotional inserts folded to carton size, packed by automatic equipment.

Production considerations

Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.

Select the folding platform around the carton insert and printed stock. Review any knife or pressing step separately and confirm module envelopes and interfaces for the ordered line.

Book signatures

Book signatures

Parallel and cross folds for section-sewn and perfect-bound work.

Production considerations

Publishing signatures require stable register through parallel and cross folds so sections collate and bind cleanly.

T600 and T780 configurations address different sheet formats. A compatible round-pile feeder can reduce stops on long batches. Set the fold pattern and feeder against the actual signature stock.

Specify the T600/6+4 buckle for your production line

Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
