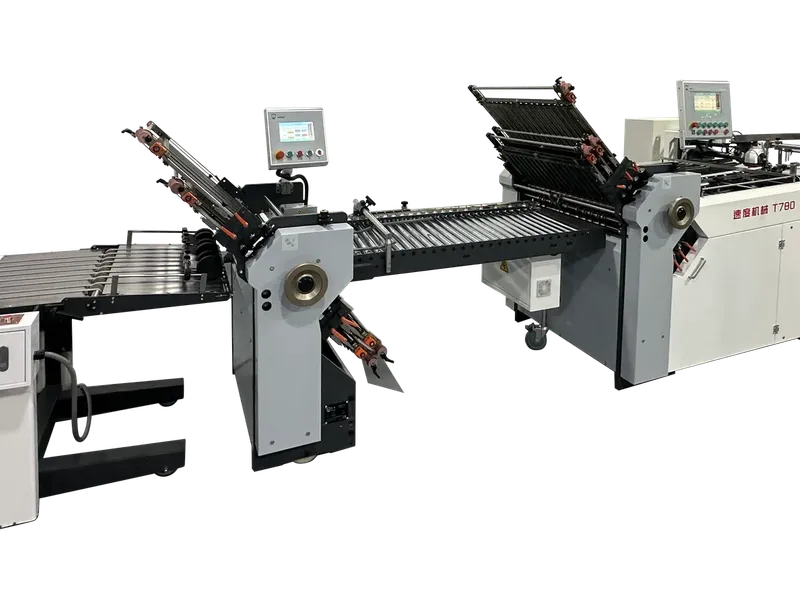

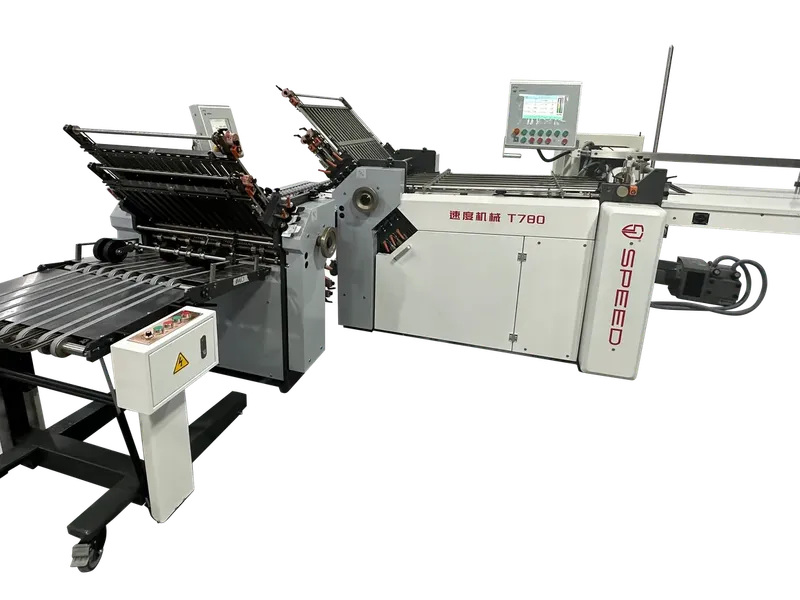

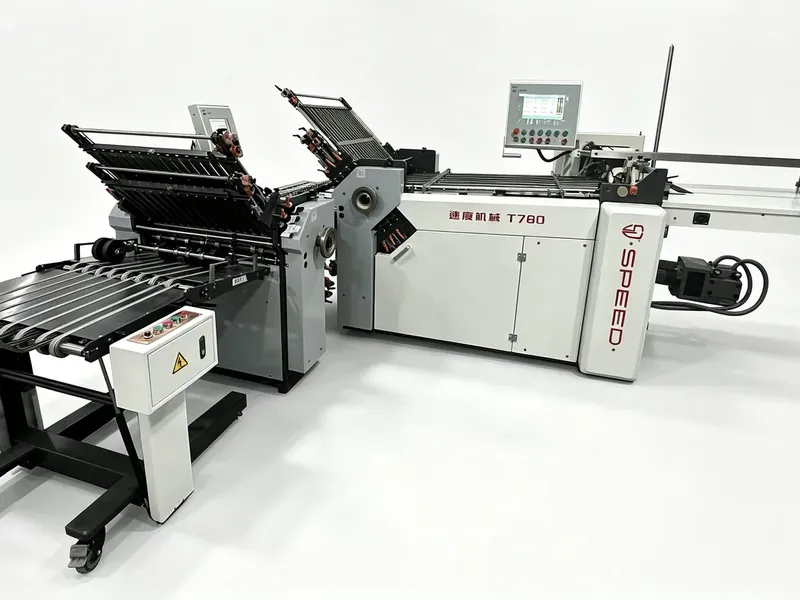

The flagship heavy-duty industrial model for oversized sheets and high-volume lines, equipped with a vacuum feeding system, double-sheet detection, servo drive and PLC touch-screen control. Built for large brochures, maps and packaging work.
Flagship heavy-duty industrial model for oversized sheets and high-volume lines. Equipped with vacuum feeding system, double-sheet detection system, servo drive system and PLC touch-screen control. Ideal for large brochures, poster inserts, packaging sheets and oversized catalogues; supports large-format half, cross, gate and multi-panel accordion folds.
Two details separate it from the small-format platforms. The folding rollers are 40 mm rather than 32 mm, which spreads the same force over a wider nip and is what keeps a 1200 mm wide sheet from marking or cracking. And the structure is sized for a 1560 kg machine running continuously, with dual automatic stack-height control at the delivery.
Paper weight range 40–210 gsm with a 45 mm minimum buckle fold. 5 kW at 380 V; 4300 × 1700 × 3500 mm; 1560 kg. Typical configuration: 6H4W-F plate sets with the recirculating feeder for long production runs.
Reference specifications for T780. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 150 × 150 mm |
|---|---|
| Max. sheet size | 780 × 1200 mm |
| Max. paper pile height | 750 mm |
| Paper weight range | 40–210 gsm |
| Min. buckle fold size | 45 mm |
| Folding roller diameter | 40 mm |
| Max. speed | 210 m/min |
| Machine power | 5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4300 × 1700 × 3500 mm |
| Net weight | 1560 kg |
Examples named in this model's product overview. The ordered plate arrangement, paper and finished format determine the actual fold set; confirm each job with a fold test.
Half fold One fold, two panels — leaflets, mailers, greeting cards.
Cross fold A parallel fold followed by a fold at right angles on the second unit.
Gate fold Two panels fold inward and meet in the centre — the classic programme insert.
Accordion fold Concertina panels alternating in direction — 风琴折. Selected items mentioned in this model's published overview and features. Their labels describe the relationship, not a standard bill of materials; confirm the ordered configuration with our team.
configuration example Buckle Folding Plates The overview cites a 6H4W-F plate arrangement.
described feature Folding Rollers 40 mm rollers are described for the T780. Production and demonstration footage related to this model. YouTube loads only when you press play.
