T780 High Speed Fully Automatic Large Format Buckle Catalog Folding Machine, fully automatic feeding, 210m/min high-speed operation, 780×1200mm max.sheet size. Supports multiple fold patterns for catalogs, brochures, magazines, manuals and posters in publishing and packaging applications.

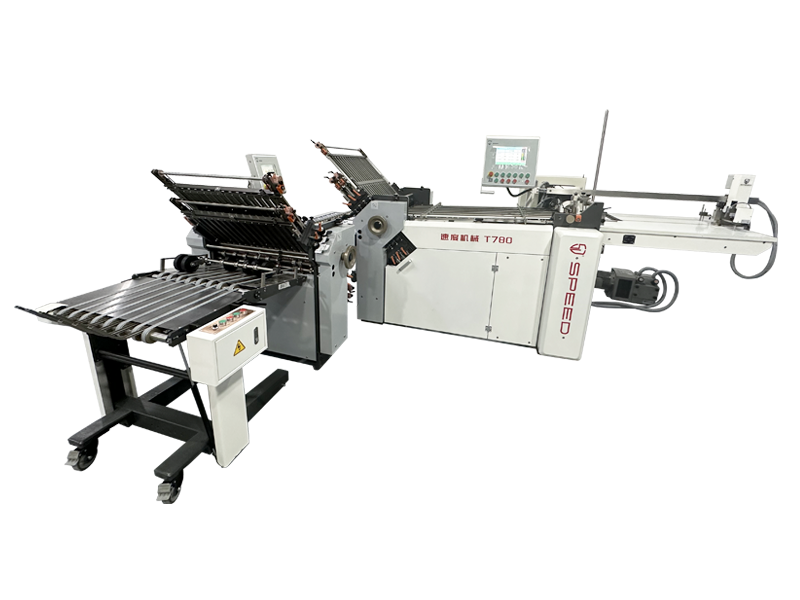

The T780 High Speed Fully Automatic Large Format Buckle Catalog Folding Machine is a heavy-duty industrial two-station buckle folder engineered for high-volume post-press finishing operations, delivering reliable, high-efficiency folding performance for print publishing houses, packaging converters and commercial printing facilities.
Equipped with 6 precision buckle plates in the first folding station and 4 buckle plates in the second station, it supports a comprehensive range of standard fold patterns including half fold、tri fold、accordion fold、double parallel fold、cross fold、gate fold and letter fold, catering to complex folding requirements of large-format printed materials. It processes 40–210gsm paper stocks with a maximum sheet size of 780×1200mm at a running speed of up to 210m/min, delivering consistent fold registration and sharp, uniform creases for steady, premium-grade output quality.
Featuring a fully automatic feeding system with a 750mm maximum paper pile height, it enables continuous high-volume production and quick job changeover between different formats, making it perfectly suited for bulk orders such as product catalogs, promotional brochures, magazines, instruction manuals and posters. Optional configurations including independent knife unit, vertical stacker and CCD vision inspection system are available to extend functionality for diversified production demands. Built with a robust industrial frame and heavy-duty folding components, it requires minimal routine maintenance and ensures stable long-term operation in 24/7 production environments.
CE certified for safety and quality compliance, this 6+4 dual-station large format buckle folder is a high-performance choice for print and packaging businesses looking to upgrade their post-press folding capabilities with high throughput and versatile large-format processing.
Reference specifications for T780/6+4 buckle. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 150 × 150 mm |
|---|---|
| Max. sheet size | 780 × 1200 mm |
| Max. paper pile height | 750 mm |
| Paper weight range | 40–210 gsm |
| Min. buckle fold size | 45 mm |
| Folding roller diameter | 40 mm |
| Max. speed | 210 m/min |
| Machine power | 5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4300 × 1700 × 3500 mm |
| Net weight | 1560 kg |
| Optional equipment | Independent knife, vertical stacker, CCD vision inspection system |
| Certification | CE Certificate |
Component availability and inclusion depend on the confirmed machine configuration.
