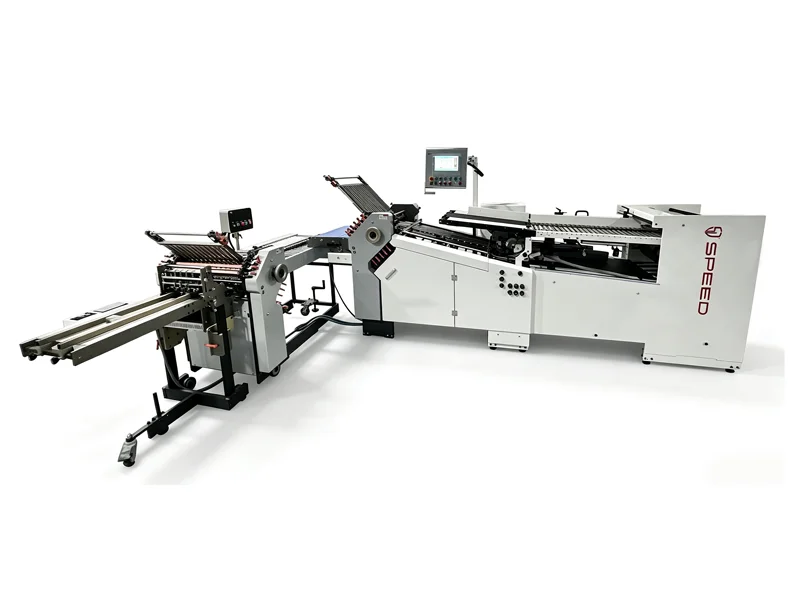

Circulating Feeder Paper Folder · Image 1 of 6

Recirculating Feeder Folding Machines
SPEED Circulating Feeder

Circulating Feeder Paper Folder

Industrial-grade post-press folding system equipped with circulating feeding system, featuring air-suction circulating feeding, PLC control. Precision circulating vacuum suction feeding, for leaflets, carton inserts and manuals, suitable for printing and packaging facilities.

Max. speed
210 m/min
Min. sheet size
150 × 150 mm
Max. sheet size
780 × 1200 mm
Max. paper pile height
750 mm
Request a technical quote Discuss line integration

Circulating Feeder overview

The Circulating Feeder Vacuum Suction Paper Folder is a precision-engineered industrial-grade circulating feeding buckle folding system designed for medium-to-high volume post-press finishing, built to meet stringent quality standards for binderies, packaging facilities and publishing houses.

It is equipped with a circulating feeding system that delivers smooth, accurate circulating vacuum suction feeding via air-suction circulating feeding technology, ensuring consistent sheet transport for stable production runs. Integrated double sheet detection function prevents feeding errors and protects the folding unit from damage, while the PLC controlled system enables precise fold setting, easy operation and quick format changeovers.

Equipped with precision buckle plates, it supports a comprehensive range of fold patterns including half fold, tri fold, accordion fold, double parallel fold, cross fold, gate fold and letter fold, making it highly versatile for instruction leaflets, carton instruction inserts, pharmaceutical inserts, promotional brochures and product catalogs. Suitable for paper stocks from 40 to 210gsm at operating speeds of up to 180m/min, it delivers precise fold registration and clean, crisp creases for professional-grade output quality.

Built with a heavy-duty industrial frame and wear-resistant folding components, it requires minimal routine maintenance and ensures stable long-term performance. CE certified for safety and quality compliance, this circulating feeder folder is a reliable and cost-effective solution for businesses seeking to enhance post-press folding precision and production efficiency.

Performance Features

  • Continuous feeding: Non-stop paper loading for uninterrupted runtime.
  • Production use: Large-run leaflets, brochures and inserts.
  • Configuration scope: T780-based complete folding-machine configuration. These figures describe the complete folding line, not standalone feeder ratings. Final specifications are subject to the confirmed customized order.

Technical specifications

Reference specifications for Circulating Feeder. Confirm the final dimensions, speed and included equipment for your ordered configuration.

Circulating Feeder Paper Folder technical specifications
Min. sheet size 150 × 150 mm
Max. sheet size 780 × 1200 mm
Max. paper pile height 750 mm
Paper weight range 40–210 gsm
Min. buckle fold size 45 mm
Folding roller diameter 40 mm
Max. speed 210 m/min
Machine power 5 kW
Voltage 380 V
Overall dimensions (L×W×H) 4300 × 1700 × 3500 mm
Net weight 1560 kg

Components & configurations

Component availability and inclusion depend on the confirmed machine configuration.

Basic Structure

Second folding unit with buckle plates and a transfer table

1.Second Folding Unit

  • Expands folding combinations to support complex fold patterns and custom applications
  • Enables multi-stage folding for sophisticated print finishing production
  • Reduces secondary processing steps to improve overall production efficiency
Electronic sheet feeder above the paper pile

2.Electronic Feeder

  • Precisely controls sheet feeding speed and spacing for consistent registration
  • Minimizes double-sheet and misalignment errors even at high production speeds
  • Ensures stable feeding across a wide range of paper grammages and stock types
Vacuum suction wheel and sheet feeding assembly

3.Three-hole Suction Wheel

  • Separates and picks up single sheets via vacuum suction to prevent double feeding
  • Works reliably with a wide range of paper grammages without slipping
  • Ensures smooth, accurate sheet pickup for continuous high-speed operation
Buckle folding plates on a SPEED paper folding machine

4.Buckle Folding Plates

  • Precision-engineered buckle structure delivers sharp, uniform fold creases
  • Enables fast format adjustment to minimize job changeover time
  • Supports all standard folding styles and custom fold configurations
Folding rollers inside a SPEED paper folding unit

5.Folding Rollers

  • Precision-machined wear-resistant rollers deliver uniform pressure
  • Produce clean, mark-free folds on all compatible paper stocks
  • Retain long-term accuracy under continuous heavy-duty production
Transfer bridge between folding units

6.Transfer Bridge

  • Transfers sheets smoothly between folding units with zero positional deviation
  • Prevents paper skew during multi-stage conveyance
  • Preserves consistent folding accuracy across the entire production process
Electrical components inside the machine control cabinet

7.Industrial-Grade Electrical Control Cabinet

  • Built with world-renowned brand electrical components for exceptional stability
  • Delivers strong anti-interference performance and extended service life
  • Cuts unplanned downtime and reduces long-term maintenance costs

Optional Configurations

Automatic sheet feeder above the paper pile

1.Automatic Sheet Feeder

  • Enables fully automatic continuous feeding with automatic sheet alignment
  • Significantly reduces manual loading labor and operator workload
  • Delivers stable, efficient feeding for extended uninterrupted production
Operator checking sheets with the CCD inspection monitor

2.CCD Vision Inspection System

  • Performs real-time high-precision detection of fold accuracy and defects
  • Automatically rejects non-conforming sheets to boost production yield
  • Eliminates manual inspection labor and lowers quality control costs
Independent cutting unit on a mobile stand

3.Independent Cutting Unit

  • Stand-alone module delivers high-precision, burr-free paper cutting
  • Can be enabled or disabled independently to match production workflows
  • Allows flexible adjustment to suit different job specifications
High-speed sheet transfer conveyor

4.High-Speed Transfer Conveyor

  • Transfers sheets rapidly and steadily between process stations
  • Maintains precise positioning to preserve folding accuracy
  • Increases overall production throughput for high-speed folding lines
Ultrasonic double-sheet sensor above the sheet path

5.Ultrasonic Double Sheet Sensor

  • Accurately detects paper thickness and double-sheet conditions
  • Features fast response, immune to paper color and transparency differences
  • Effectively prevents feeding errors for uninterrupted production
Glue application system control panel

6.Glue Application System

  • Precisely controls glue volume and application position
  • Creates uniform glue lines for consistent, clean bonding without overflow
  • Compatible with various paper types and glue formulations
Inline labeling unit with a label reel

7.Inline Labeling Unit

  • Operates in sync with the folding process for fully integrated production
  • Applies labels with precise registration and bubble-free adhesion
  • Eliminates offline labeling steps to boost overall production efficiency
Vertical stacker delivery unit

8.Vertical Stacker Delivery

  • Vertical stacking design delivers neat, aligned paper piles
  • High stacking capacity reduces manual unloading frequency
  • Supports continuous bulk production and streamlines downstream processing

Circulating Feeder production & demonstration

Product footage supplied with this model. Press play to view the video.

Recirculating Feeder Paper Folding Machine

Other machines in this range

All recirculating feeder folding machines →

Folded product applications

Brochures and catalogues

Brochures and catalogues

Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.

Production considerations

Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.

T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.

Book signatures

Book signatures

Parallel and cross folds for section-sewn and perfect-bound work.

Production considerations

Publishing signatures require stable register through parallel and cross folds so sections collate and bind cleanly.

T600 and T780 configurations address different sheet formats. A compatible round-pile feeder can reduce stops on long batches. Set the fold pattern and feeder against the actual signature stock.

Specify the Circulating Feeder for your production line

Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.

Discuss line integration [email protected]
