This recirculating feeder paper folding machine delivers uninterrupted continuous sheet feeding for high-efficiency buckle folding, ideal for long-run commercial print, leaflet and brochure manufacturing.

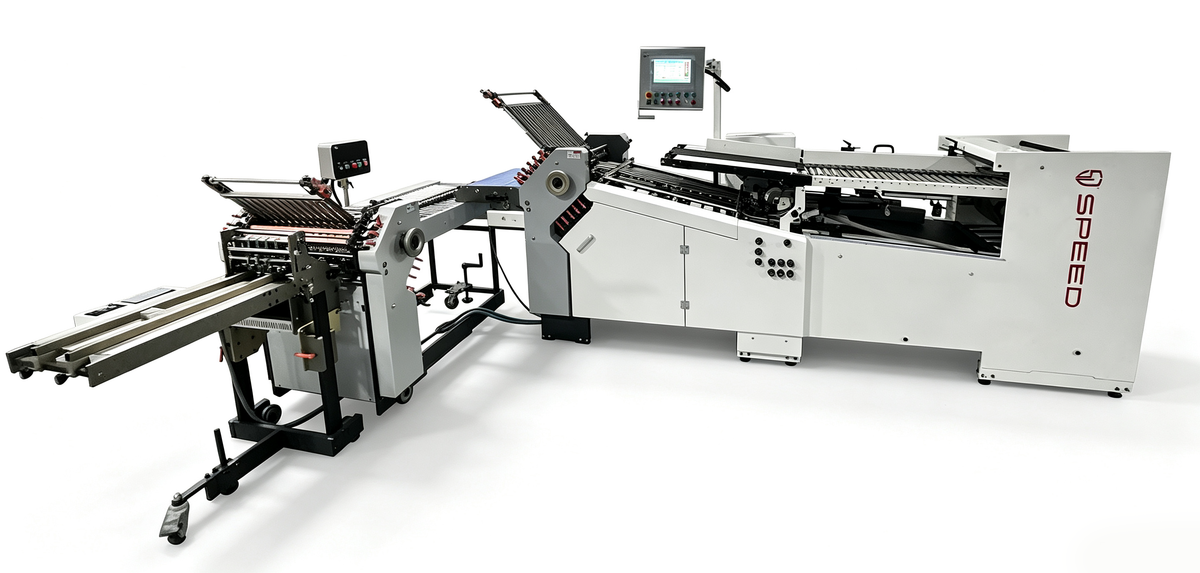

The Recirculating Feeder Paper Folding Machine is a high-productivity automatic buckle folder engineered for long-run, high-volume post-press finishing operations.
Its industry-leading recirculating sheet feeder system enables fully uninterrupted continuous paper feeding, eliminating frequent downtime for paper reloading and significantly boosting throughput compared to standard pile feeders. Paired with precision fold registration, an optimized anti-jam paper path and double-sheet detection, it delivers consistent, wrinkle-free folding quality across a wide range of paper weights.
Equipped with a PLC control system for stepless speed adjustment, the machine supports a full range of fold patterns including parallel fold, cross fold, gate fold and accordion fold, making it highly versatile for commercial leaflets, brochures, instruction manuals, packaging inserts and poster production.
CE-certified and built for continuous operation, this recirculating feeder folding machine is the ideal solution for commercial print houses and packaging converters seeking maximized production efficiency and reliable long-run performance.
Reference specifications for RP-FEEDER. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 150 × 150 mm |
|---|---|
| Max. sheet size | 780 × 1200 mm |
| Max. paper pile height | 750 mm |
| Paper weight range | 40–210 gsm |
| Min. buckle fold size | 45 mm |
| Folding roller diameter | 40 mm |
| Max. speed | 210 m/min |
| Machine power | 5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4300 × 1700 × 3500 mm |
| Net weight | 1560 kg |
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.
Solution · High-speed folding High-Speed Paper Folding Machines Speed on a folding machine is not a single number. A folder only holds its rated 180 or 210 m/min if the feeder keeps up, the rollers do not slip, and the delivery does not force a stop every few thousand sheets. High-speed folding is therefore a system question: feeder continuity, transmission type
Solution · Large format Large Format Paper Folding Machines Large format folding is a different machine class, not a bigger version of a small one. Once sheets pass roughly A2, the paper behaves like a stiff plate: it needs a wider and gentler feed, larger roller diameters to avoid marking, and enough structural rigidity that the frame does not flex under a
Circulating Feeder Industrial-grade post-press folding system equipped with circulating feeding system, featuring air-suction circulating feeding, PLC control. Precision circulating vacuum suction feeding, for leaflets, carton inserts and manuals, suitable for printing and packaging facilities.
Continuous Feed Industrial-grade post-press folding system equipped with continuous feeding unit, 210m/min high speed continuous sheet feeding, supports multiple fold patterns for catalogs, carton inserts, instruction manuals and magazine, ideal for large-scale printing plants and publishing houses.
Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.
Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.
T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.
Parallel and cross folds for section-sewn and perfect-bound work.
Publishing signatures require stable register through parallel and cross folds so sections collate and bind cleanly.
T600 and T780 configurations address different sheet formats. A compatible round-pile feeder can reduce stops on long batches. Set the fold pattern and feeder against the actual signature stock.
Send your existing equipment, material, finished dimensions and production requirements. Our team can review the module specification and line integration.
