Industrial-grade post-press folding system equipped with continuous feeding unit, 210m/min high speed continuous sheet feeding, supports multiple fold patterns for catalogs, carton inserts, instruction manuals and magazine, ideal for large-scale printing plants and publishing houses.

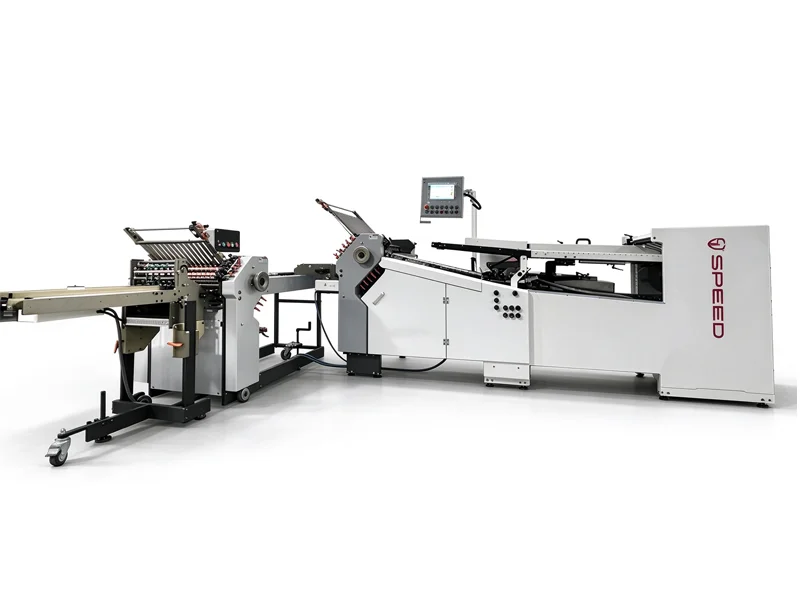

The Continuous Feed High-Speed Paper Folding Machine is an industrial-grade automatic buckle folding system engineered for high-volume post-press finishing operations, ideal for large-scale printing plants and dedicated for publishing houses with mass production demands.

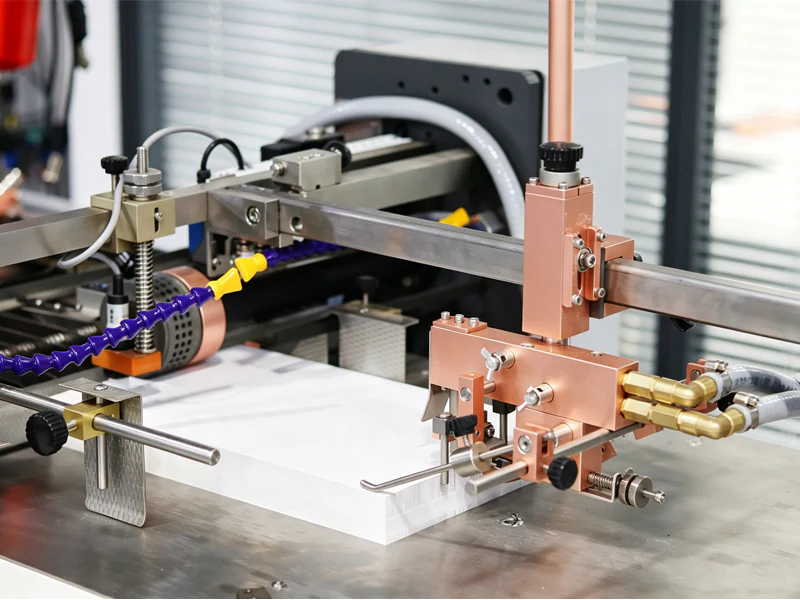

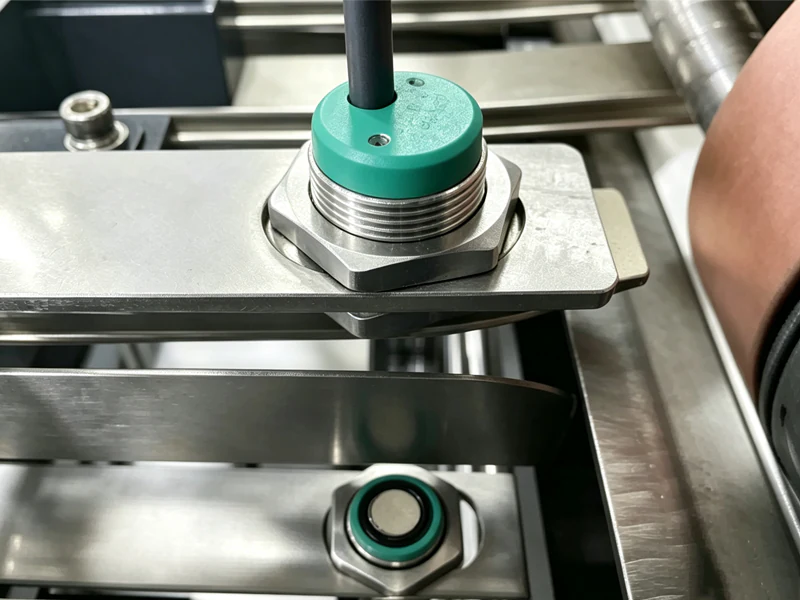

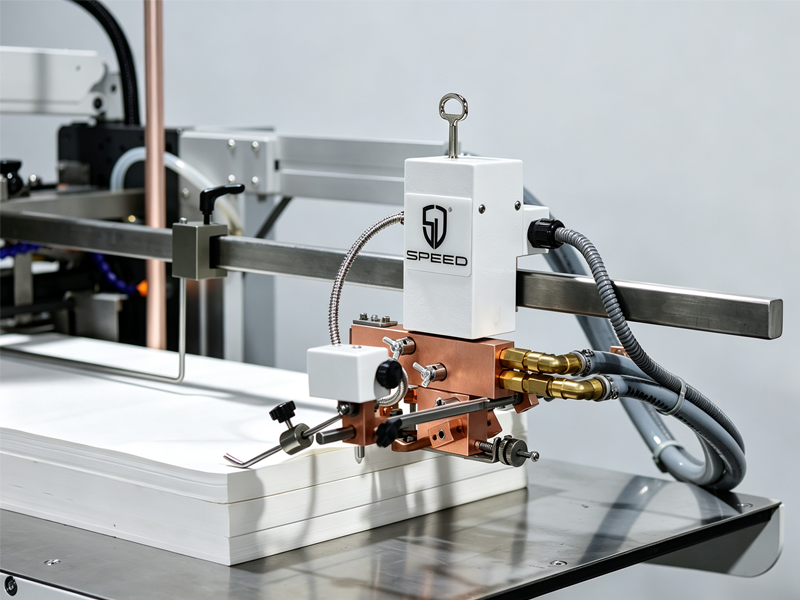

It is equipped with a continuous feeding unit that delivers stable, non-stop continuous sheet feeding for uninterrupted production runs. The integrated double sheet detection function effectively prevents misfeeds, reduces paper waste and minimizes downtime. Built with a PLC controlled system, it ensures precise folding parameters and quick job changeovers for diversified production needs.

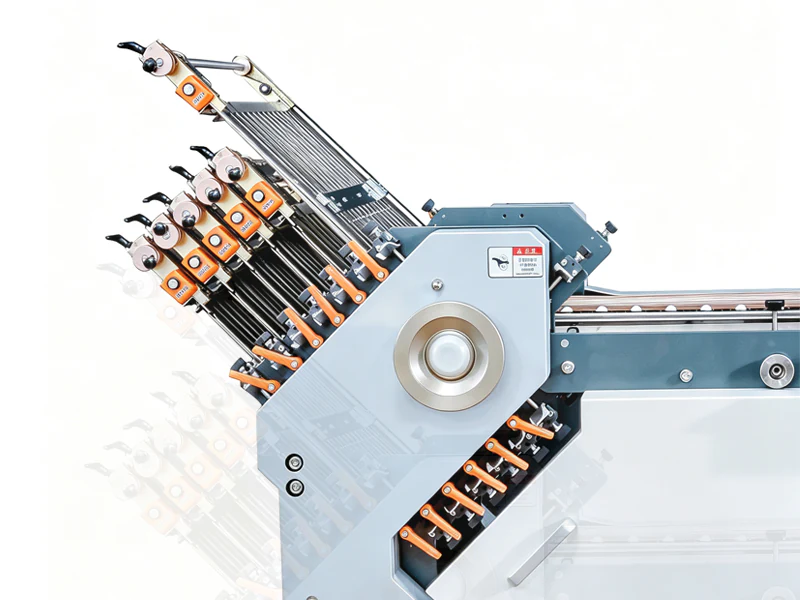

Equipped with multi-station precision buckle plates, it supports a full range of standard fold patterns including half fold, tri fold, accordion fold, double parallel fold, cross fold, gate fold and letter fold, catering to diverse folding requirements for brochures, instruction manuals, carton instruction inserts and product catalogs. The machine processes paper stocks ranging from 40 to 210gsm at a high-speed running rate of up to 210m/min, delivering consistent fold registration and sharp, uniform creases for premium output quality.

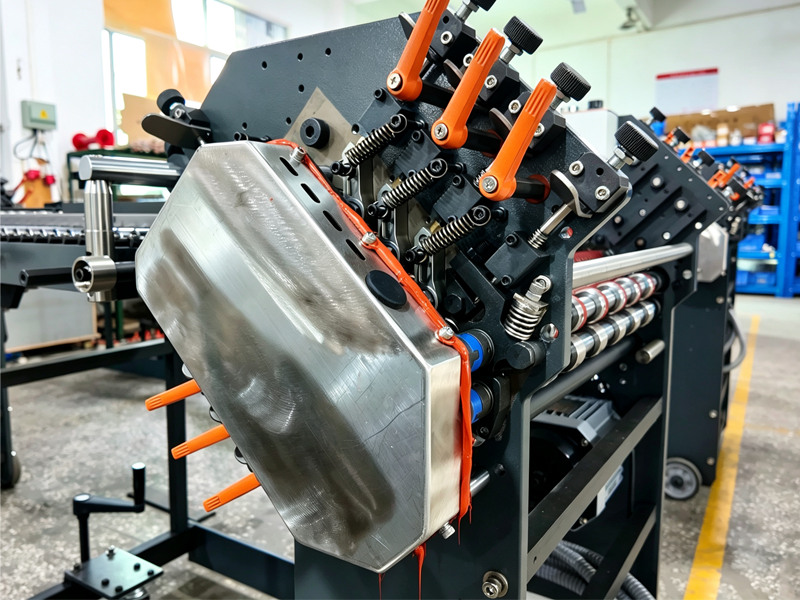

Built with a robust industrial frame and durable components, it requires minimal routine maintenance and ensures reliable long-term operation. CE certified for safety and quality compliance, this continuous feed folder is a high-performance choice for businesses looking to boost post-press production capacity and workflow efficiency.
Reference specifications for Continuous Feed. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 150 × 150 mm |
|---|---|
| Max. sheet size | 780 × 1200 mm |
| Max. paper pile height | 750 mm |
| Paper weight range | 40–210 gsm |
| Min. buckle fold size | 45 mm |

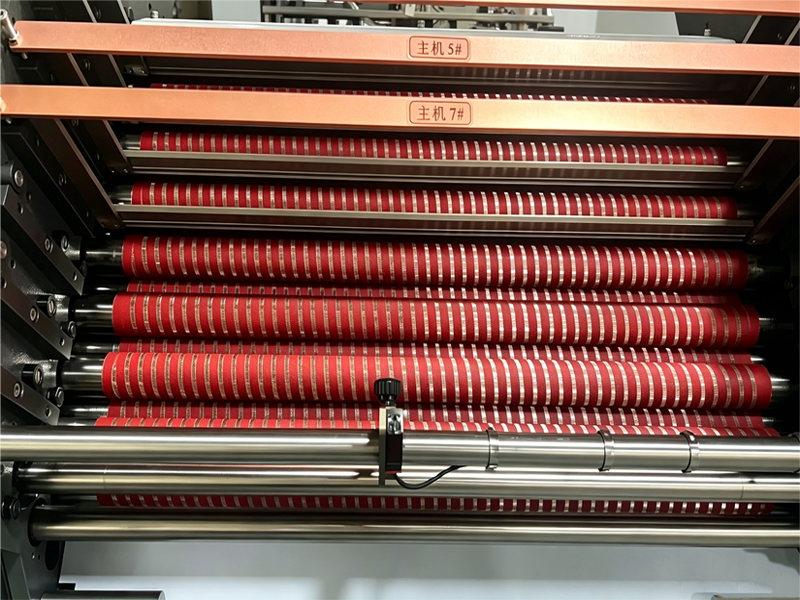

| Folding roller diameter | 40 mm |
| Max. speed | 210 m/min |
| Machine power | 5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4300 × 1700 × 3500 mm |
| Net weight | 1560 kg |
Component availability and inclusion depend on the confirmed machine configuration.
Product footage supplied with this model. Press play to view the video.

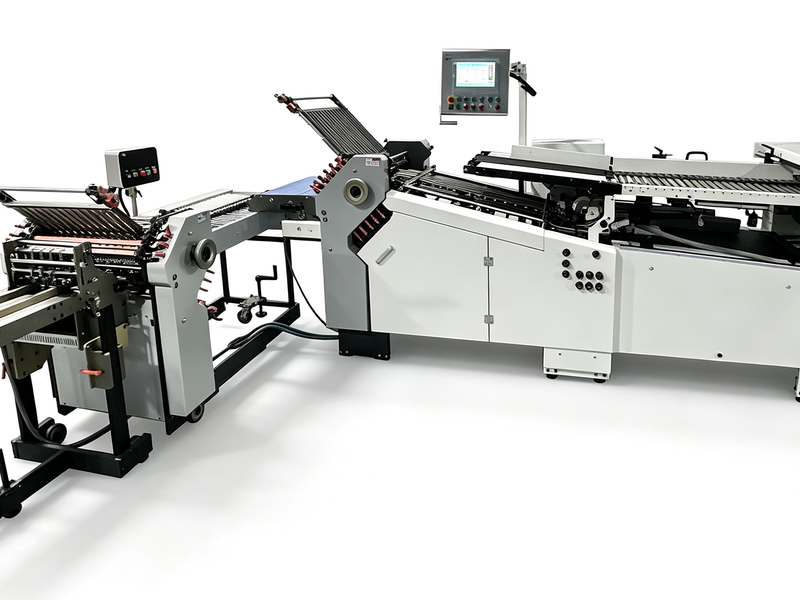

RP-FEEDER This recirculating feeder paper folding machine delivers uninterrupted continuous sheet feeding for high-efficiency buckle folding, ideal for long-run commercial print, leaflet and brochure manufacturing.

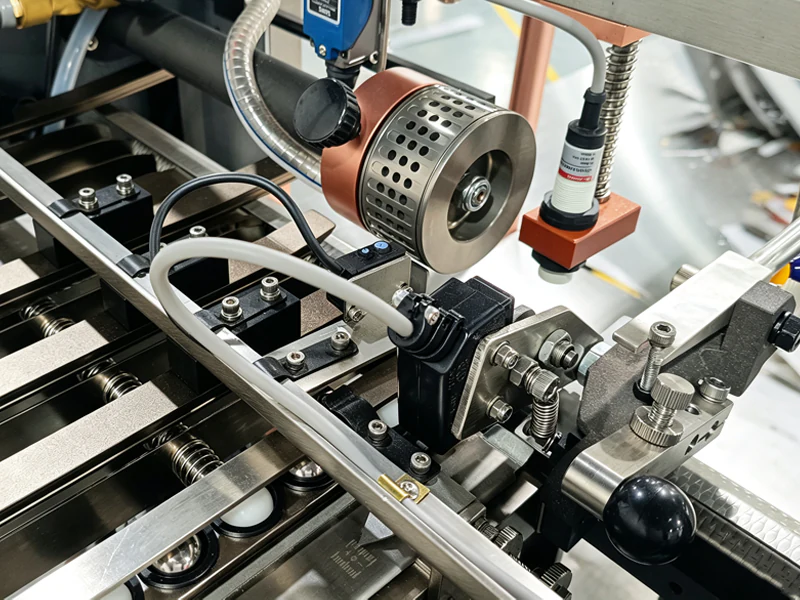

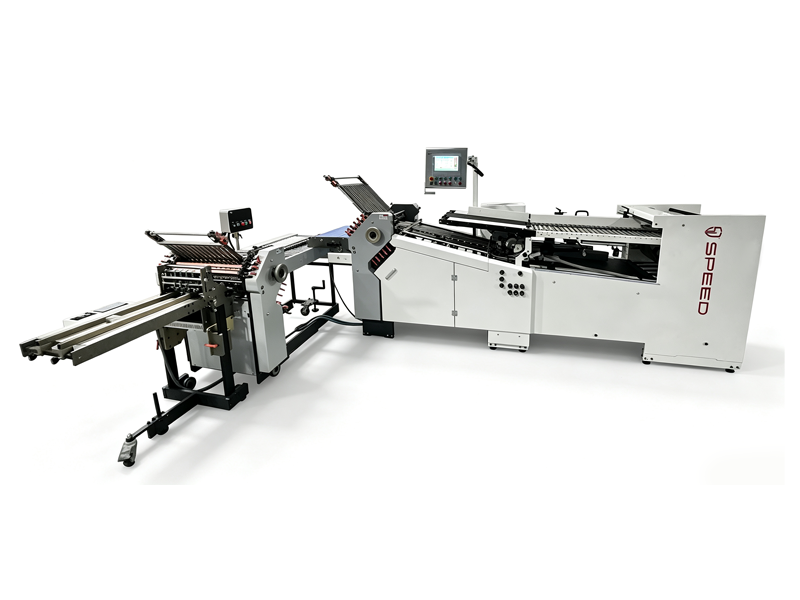

Circulating Feeder Industrial-grade post-press folding system equipped with circulating feeding system, featuring air-suction circulating feeding, PLC control. Precision circulating vacuum suction feeding, for leaflets, carton inserts and manuals, suitable for printing and packaging facilities.
Parallel, roll and gate folds in 100–200 gsm stock, folded square enough to stack flat.
Commercial print shops alternate between brochure, catalogue and mailer formats. Fold-pattern coverage and changeover time therefore matter alongside running speed.
T490, T600 and T780 configurations cover different sheet formats. Round-pile feeding can support longer runs on compatible T600 and T780 lines. Match the plate set and feeder to the real job mix.
Parallel and cross folds for section-sewn and perfect-bound work.
Publishing signatures require stable register through parallel and cross folds so sections collate and bind cleanly.
T600 and T780 configurations address different sheet formats. A compatible round-pile feeder can reduce stops on long batches. Set the fold pattern and feeder against the actual signature stock.
